SELECT A DIAGRAM

01 - Cover Sheet

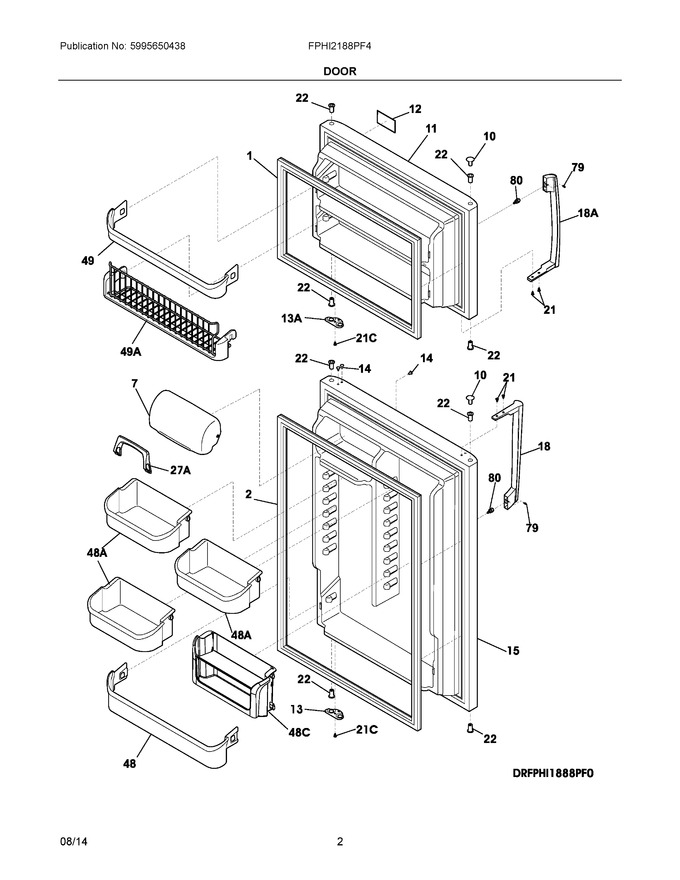

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Ice Maker


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872505		Gasket-frzr Door, White, Magnetic   (Replaces: 242193205)				$ 179.22
2	242193213		Gasket-refr Door, White, Magnetic			Immediately	$ 190.22
7	240338313		Door, Dairy, Clear   (Replaces: 240338303)			Immediately	$ 80.80
10	240381307		Plug-button, Silver Mist, Hinge Brg Hole   (Replaces: 240381306)			Immediately	$ 16.69
11	242178001		Door-frzr, Stainless, Complete Assy				$ 576.12
12	242015101		Nameplate				$ 4.55
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 15.17
14	240494006		Plug-button, Silver Mist				$ 19.69
15	242178114		Door-refr, Stainless, Complete				$ 558.81
18	241977601		Handle-door, Refr-lh/frzr-rh		Appelez-nous	-
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door			Immediately	$ 52.37
49	240495805		Bin-door, Pseudo, Frzr				$ 50.94
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	241977602		Handle-door, Refr-rh/frzr-lh		Appelez-nous	-
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
27A	241812702		Retainer, Tall Bottle				$ 18.38
48A	241808201		Bin-door, Gallon   (Replaces: 241808227)			Immediately	$ 79.97
48C	242088303		Bin-door, Left Over				$ 57.18
49A	241801401		Bin-tilt Out, Tilt-out				$ 119.79
NI	241601001		Wrench, Allen		Appelez-nous	-
NIA	241804822		Bin-liners		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
