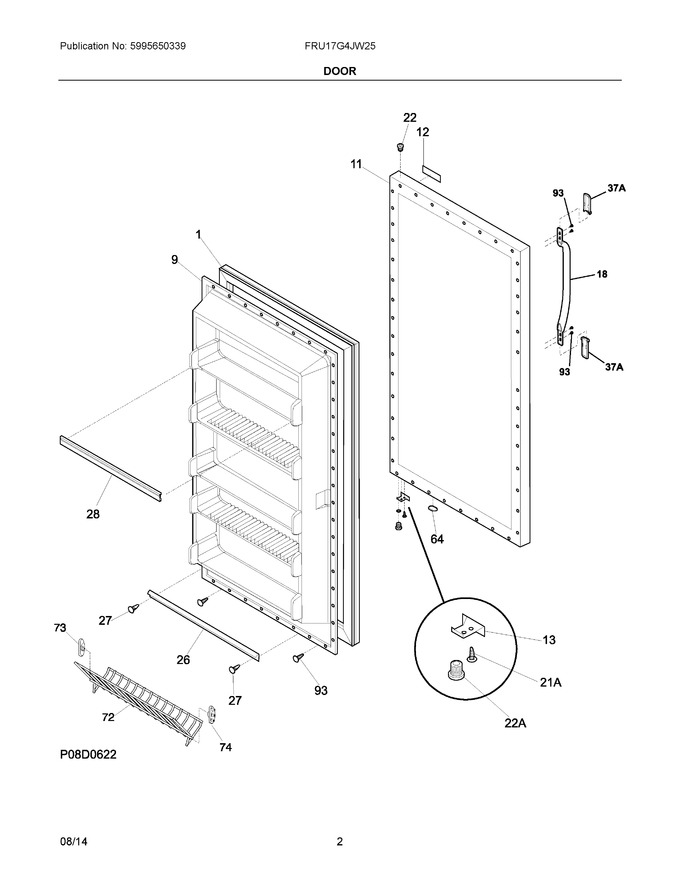

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507200 | Gasket-door, White (Replaces: 216522359) |
|
Immediately | $ 188.19 | ||||
| 9 | 216527813 | Panel-inner Door |
|
$ 270.75 | |||||
| 11 | 297316515 | Panel-outer Door, White |
|
$ 231.11 | |||||
| 12 | 242062801 | Nameplate, White |
|
$ 11.65 | |||||
| 13 | 297257000 | Door Stop, Chrome, Rh |
|
$ 16.63 | |||||
| 18 | 297311201 | Handle-door, White |
|
Immediately | $ 80.60 | ||||
| 22 | 216970802 | Bearing, Hinge W/o'ring, Top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524201 | Gasket, Secondary |
|
$ 49.62 | |||||
| 27 | 5304472186 | Clip, Panel Mtg |
|
$ 11.57 | |||||
| 28 | 216806100 | Rack-door, Contour, (3) |
|
$ 80.59 | |||||
| 64 | 216403700 | Plug-button, Hole Filler, Door Base |
|
$ 58.12 | |||||
| 72 | 216514100 | Shelf, Tilt Out, Wire |
|
$ 123.80 | |||||
| 73 | 216513900 | End Cap, Shelf, Lh, Tilt-out |
|
$ 48.86 | |||||
| 74 | 216514000 | End Cap, Shelf, Rh, Tilt-out |
|
$ 48.05 | |||||
| 93 | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 14.46 | |||||
| 22A | 297006800 | Bearing-hinge, Btm, W/o'ring |
|
$ 12.29 | |||||
| 37A | 297309800 | Trim-handle, White, W/gray Band |
|
Immediately | $ 21.27 | ||||
| NI | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 125.83 | |||||
| NIA | 5304521296 | Handle-door, Install Kit, White (Replaces: 297429100) |
|
$ 51.34 |
