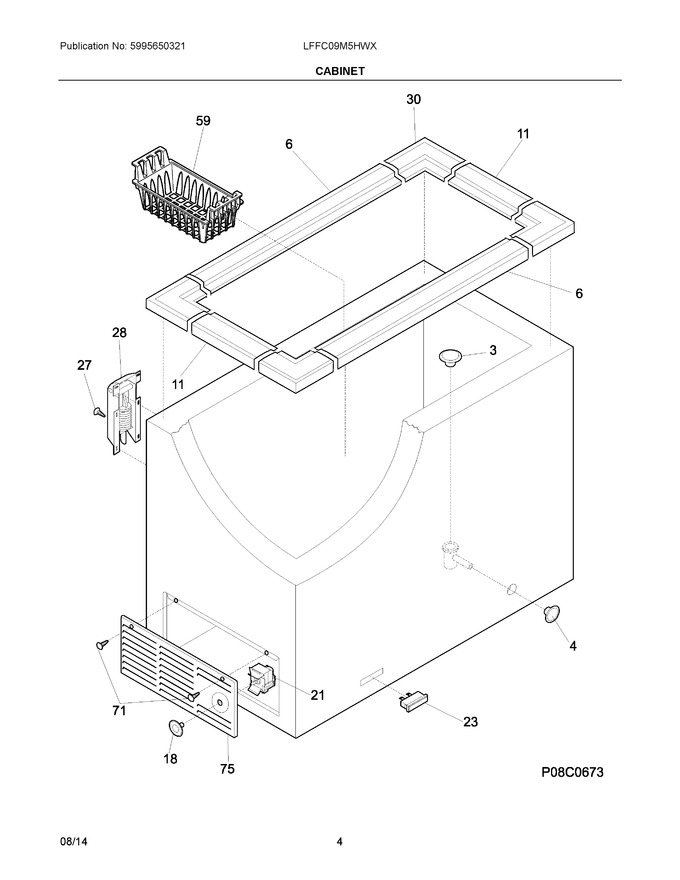

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	216855704		Breaker-hinge Side, White				$ 56.81
11	216855706		Breaker-ends, White		Appelez-nous	-
18	216707200		Knob, Temp Control				$ 44.10
21	5304496559		Control-temperature   (Replaces: 297216000)			Immediately	$ 44.18
23	297181900		Light, Signal, Amber				$ 16.96
27	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
28	297313200		Hinge Assy				$ 42.79
30	216105500		Breaker-corners, White				$ 46.83
59	216848200		Basket				$ 53.21
71	5304463819		Screw, Ab, 8-18x3/8				$ 1.27
75	297412700		Panel, Access, White				$ 36.25
NI	297080400		Owners Guide				$ 21.60
NI	216794015		Energy Guide		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
