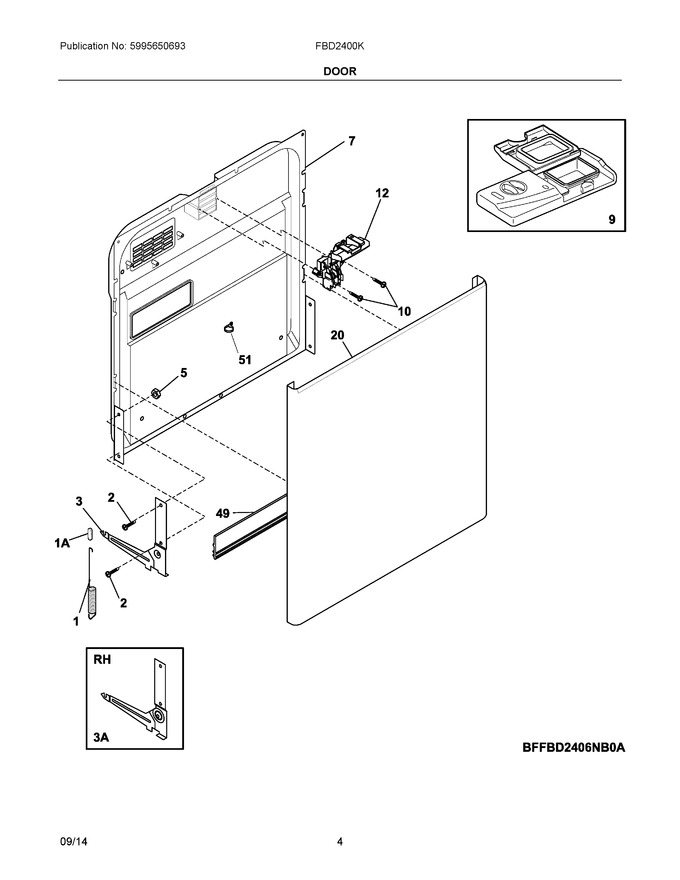

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring, Door, (2) |
|
Immediately | $ 36.31 | ||||
| 2 | 154093301 | Screw, Arm Assy, (4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Arm Assy, Lh (Replaces: 154691201) |
|
Immediately | $ 66.56 | ||||
| 5 | 154079601 | Nut, Arm Assy, And Handle Mtg. |
|
$ 0.41 | |||||
| 7 | 154494601 | Liner, Door Assy. |
|
$ 239.60 | |||||
| 9 | 5304506521 | Dispenser, Det/rinse Aid, W/level Ind. (Replaces: 154860101) |
|
Immediately | $ 99.05 | ||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| 12 | 5304490629 | Latch Assy, Black |
|
- | |||||
| 20 | 154828805 | Door, Stainless, W/moisture Barr |
|
$ 192.94 | |||||
| 49 | 809006501 | Gasket, Door, Bottom (Replaces: 154576501) |
|
Immediately | $ 36.22 | ||||
| 51 | 154320301 | Clamp, Drip Loop, Wire |
|
$ 62.69 | |||||
| 1A | 154325201 | Linkage, Door Spring, (2) |
|
Immediately | $ 27.27 | ||||
| 3A | 5304513274 | Arm Assy, Rh (Replaces: 154691101) |
|
Immediately | $ 66.56 | ||||
| NI | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.55 | |||||
| NI | 154686401 | Bearing, Hinge Pin |
|
$ 10.63 | |||||
| NI | 154647101 | Hinge Pin, Arm Assy |
|
$ 14.18 | |||||
| NIA | 5304525214 | Shield, Dispenser Assy (Replaces: 154719301) |
|
Immediately | $ 10.13 |
