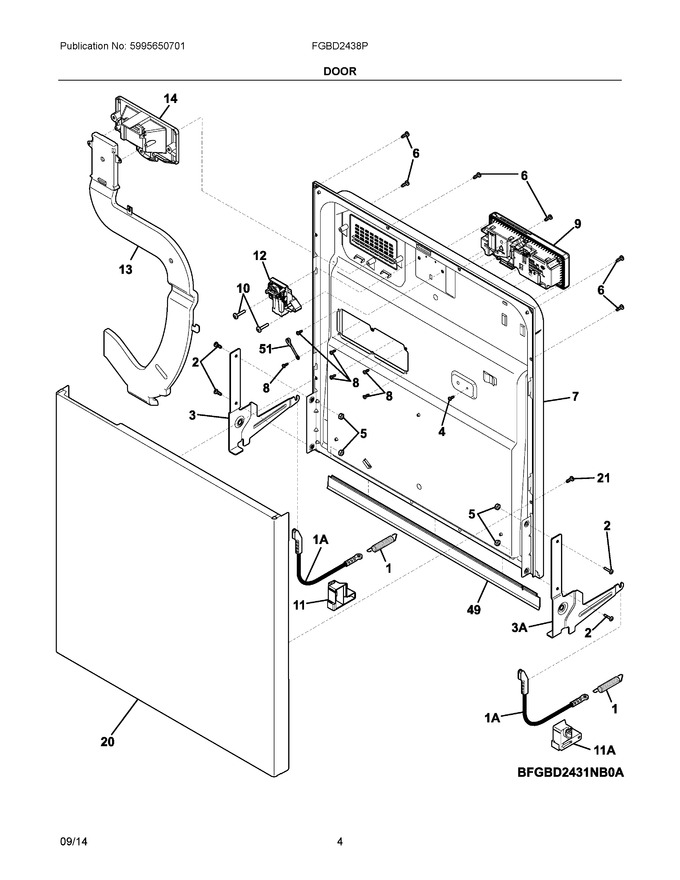

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154579101 | Spring, Friction Pulley, (2) |
|
Immediately | $ 40.50 | ||||
| 2 | 154093301 | Screw, Arm Assy, (4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Arm Assy, Lh (Replaces: 154691201) |
|
Immediately | $ 66.56 | ||||
| 4 | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| 5 | 154079601 | Nut, Arm Assy, And Handle Mtg. |
|
$ 0.41 | |||||
| 6 | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| 7 | 154743504 | Liner, Door Assembly, Dark Grey, Complete |
|
$ 150.73 | |||||
| 8 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 9 | 5304506521 | Dispenser, Det/rinse Aid, W/level Ind. (Replaces: 154860101) |
|
Immediately | $ 99.05 | ||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| 11 | 154579201 | Pulley, Friction, Lh |
|
Immediately | $ 47.48 | ||||
| 12 | 5304525218 | Latch Assembly, Door (Replaces: 154722401) |
|
Immediately | $ 49.89 | ||||
| 13 | 154755801 | Duct Assembly, Vent, W/tape |
|
$ 83.83 | |||||
| 14 | 154784401 | Vent Assy, Dry, W/gaskets |
|
$ 44.14 | |||||
| 20 | 154874705 | Door Assembly, W/insullation, Stainless |
|
$ 188.53 | |||||
| 21 | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.55 | |||||
| 49 | 809006501 | Gasket, Door, Bottom |
|
Immediately | $ 36.22 | ||||
| 51 | 154320301 | Clamp, Drip Loop, Wire |
|
$ 62.69 | |||||
| 11A | 154579202 | Pulley, Friction, Rh |
|
Immediately | $ 47.48 | ||||
| 1A | 154756401 | Cable, Friction Pulley, (2) (Replaces: 154578801) |
|
Immediately | $ 11.89 | ||||
| 3A | 5304513274 | Arm Assy, Rh (Replaces: 154691101) |
|
Immediately | $ 66.56 | ||||
| NI | 154647101 | Hinge Pin, Arm Assy |
|
$ 14.18 | |||||
| NI | 5304538695 | Insulation, Door (Replaces: 154253201) |
|
- | |||||
| NI | 154686401 | Bearing, Hinge Pin |
|
$ 10.63 | |||||
| NIA | 5304525214 | Shield, Dispenser Assy (Replaces: 154719301) |
|
Immediately | $ 10.13 | ||||
| NIA | 154793401 | Screw, Dry Duct, (3) |
|
$ 7.09 |
