SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts

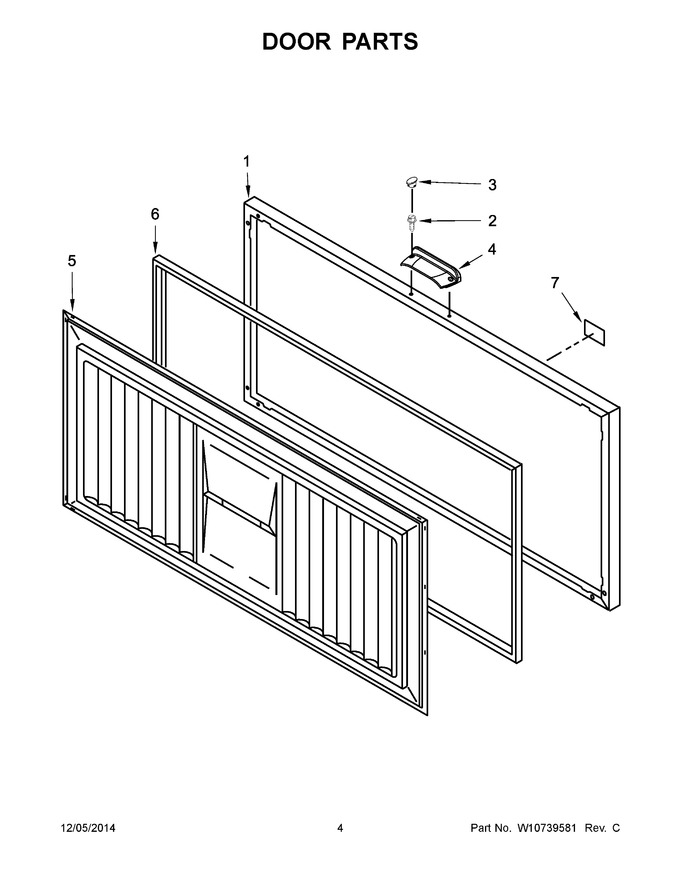

03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10717196		Lid (includes Insulation)				$ 303.49
2	WPW10142283		Screw   (Replaces: 3-80732-007)				$ 8.86
3	W10712378		Cover, Screw Handle				$ 15.16
4	W10852738		Handle, Door (white)   (Replaces: W10711161)				$ 33.90
5	W10914247		Liner, Door   (Replaces: W10673929)				$ 358.97
6	WP4-35260-005		Gasket, Door (white)   (Replaces: 4-35260-005)				$ 287.65
7	W11428492		Badge, Amana   (Replaces: W10200425)				$ 71.63
