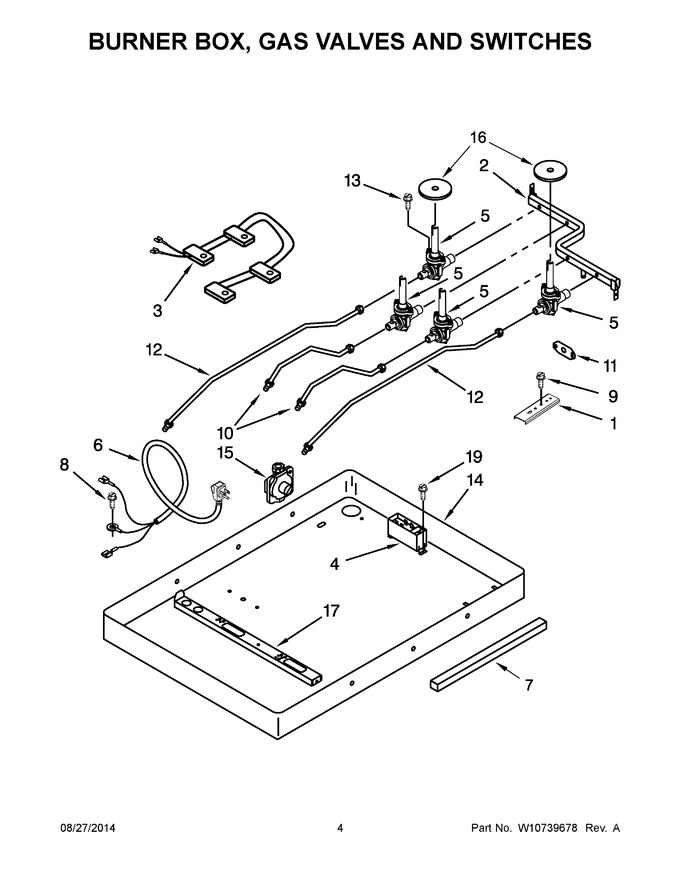

03 - Burner Box, Gas Valves And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 79.60
2	9759354		Pipe, Manifold				$ 146.31
3	WP4456905		Harness, Switch   (Replaces: 4456905)			Immediately	$ 176.83
4	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 276.35
5	WP4456817		Valve, Gas Burner (right Front, Right Rear, Left Rear)   (Replaces: 4456817)				$ 286.38
6	W10392007		Cord, Power				$ 96.25
7	9760045		Seal, Foam				$ 236.42
8	12002277		Screw   (Replaces: 7101P640-60)				$ 272.78
9	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
10	3191318		Tubing, Burner Rr & Rf				$ 97.98
11	8286858		Plate, Manifold		Appelez-nous	-
12	3191320		Tubing, Burner Lr,lf				$ 102.95
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
14	4456780		Box, Burner		Appelez-nous	-
15	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 283.08
16	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
17	W10203756		Rail, Burner		Appelez-nous	-
5A	WP4456816		Valve, Gas (small) (left Front)   (Replaces: 4456816)			Immediately	$ 286.55
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP8286320		Spud Kit   (Replaces: 8286320)				$ 115.78
