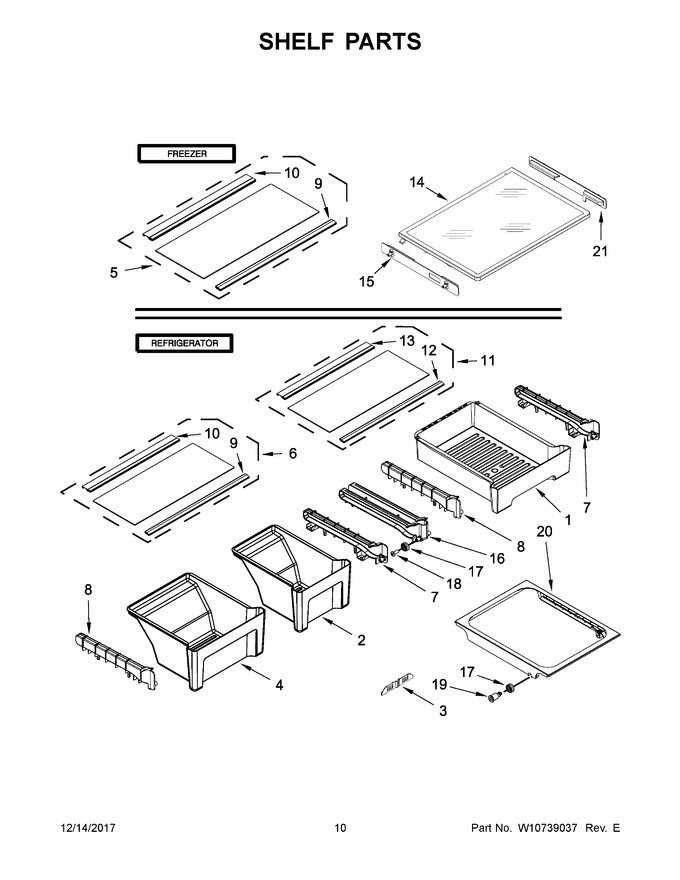

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10861806		Pan, Meat   (Replaces: W10714006)				$ 169.15
2	W11190823		Pan, Crisper   (Replaces: W10662133)				$ 122.16
3	W11590562		Control, Humidity   (Replaces: W10356844)				$ 20.10
4	W10860122		Pan, Crisper 16   (Replaces: W10663427)				$ 139.08
5	W11263192		Assembly, Shelf Crisper   (Replaces: W10809780)				$ 208.66
6	W11736734		Assembly, Shelf Rc   (Replaces: W10809779)			Immediately	$ 231.86
7	W11051442		Track Rail, Right Hand   (Replaces: W10694151)				$ 103.73
8	W11025586		Track Rail, Left Hand   (Replaces: W10694149)				$ 106.84
9	W11097166		Trim, Shelf Front   (Replaces: W10809769)				$ 195.81
10	W10730166		Trim, Shelf Rear   (Replaces: W10691459)				$ 104.07
11	WPW10691487		Assembly, Shelf   (Replaces: W10691487)				$ 220.96
12	WPW10691487		Trim, Shelf Front   (Replaces: W10691528)				$ 220.96
13	WPW10691487		Trim, Shelf Rear   (Replaces: W10691529)				$ 220.96
14	WPW10486291		Shelf, Freezer Glass   (Replaces: W10486291)				$ 259.24
15	W11395919		Support, Freezer Shelf (left Side)   (Replaces: W10345367)				$ 25.78
16	W11652044		Track Rail, Center   (Replaces: W10694150)				$ 32.93
17	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 13.49
18	WP3400065		Screw (stainless)   (Replaces: 3400065)			Immediately	$ 6.97
19	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 15.35
20	W10861519		Holder, Meat Pan   (Replaces: W10628698)			Immediately	$ 78.99
21	W11395921		Support, Freezer Shelf (right Side)   (Replaces: W10345368)				$ 25.78
