SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

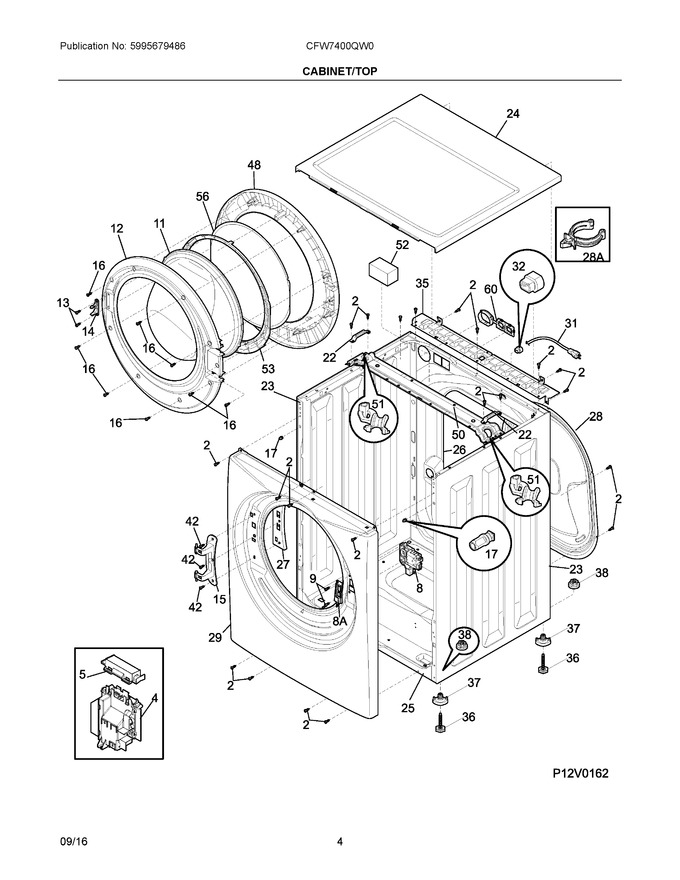

03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134618213		Control Board, Motor   (Replaces: 134618211)				$ 310.14
5	134649700		Cover, Motor Control, Housing				$ 48.15
8	131763256		Door Lock/switch Assy   (Replaces: 131763255)			Immediately	$ 146.76
9	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
11	134366400		Panel, Door Glass   (Replaces: 134950800)				$ 313.91
12	137280302		Frame, Inner Door, Gray			Immediately	$ 202.00
13	131302901		Screw, 10-16 X 0.750				$ 4.96
14	131763302		Striker, Door/lock, Gray   (Replaces: 134456602)			Immediately	$ 35.08
15	134550800		Hinge, Door, With Bushings				$ 141.75
16	131205300		Screw, 10-16 X 0.750			Immediately	$ 12.10
17	134638700		Clip, Assembly		Appelez-nous	-
22	134648500		Bracket-spring, Retainer				$ 19.69
23	134958010		Panel, Left/right Side, White				$ 223.55
24	134638510		Panel, Work Top, White				$ 217.22
25	134646001		Base, Washed		Appelez-nous	-
26	134962000		Panel, Back				$ 207.48
27	134550900		Bracket, Hinge, Reinforcement				$ 60.72
28	134646200		Panel, Service, Back				$ 11.63
29	137021811		Panel, Front, White				$ 290.54
31	137011400		Power Cord, Electric Svce, 120 16a				$ 62.17
32	5303209428		Bushing, Strain Relief				$ 17.01
35	134713100		Bracket, Top Panel Mtg., Rear				$ 70.82
36	134639100		Leveling Leg, Screw			Immediately	$ 31.19
37	134617600		Bushing, Leveling Leg				$ 34.02
38	134639200		Nut, Leveling Leg, Bushing				$ 31.90
42	137380600		Screw, M5 X, 0.8 X 17.50				$ 9.41
48	5304506743		Panel, Outer Door, Titanium   (Replaces: 137265525)				$ 279.73
50	134645600		Bracket, Tub Suspension		Appelez-nous	-
51	134655800		Protector, Tub Suspension, Spring Hook, (2)				$ 4.45
52	131931202		Dampener, Vibration, Foam				$ 17.35
53	137266700		Ring, Door Transition				$ 175.68
56	137578120		Lens, Outer Door				$ 102.06
60	134372000		Grommet, Dispenser, Back Panel				$ 30.47
28A	134876501		Clip, Hose, Drain, Rear-panel   (Replaces: 134876500)				$ 19.85
8A	137279900		Vent, Door, Complete Assy				$ 47.48
NI	134649401		Fastener, Hose Clip, External		Appelez-nous	-
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76
NI	134591500		Plug Assy, Shipping Holes, Back				$ 46.78
NIA	134926600		Damper, Sound				$ 14.18
NIA	137021600		Bracket, Mounting, Left, Front Panel				$ 11.96
NIA	137288600		Wiring Harness, Door Switch				$ 119.23
NIB	137021610		Bracket, Mounting, Right, Front Panel				$ 21.60

    View Diagram in Separate Window       Print Part List
