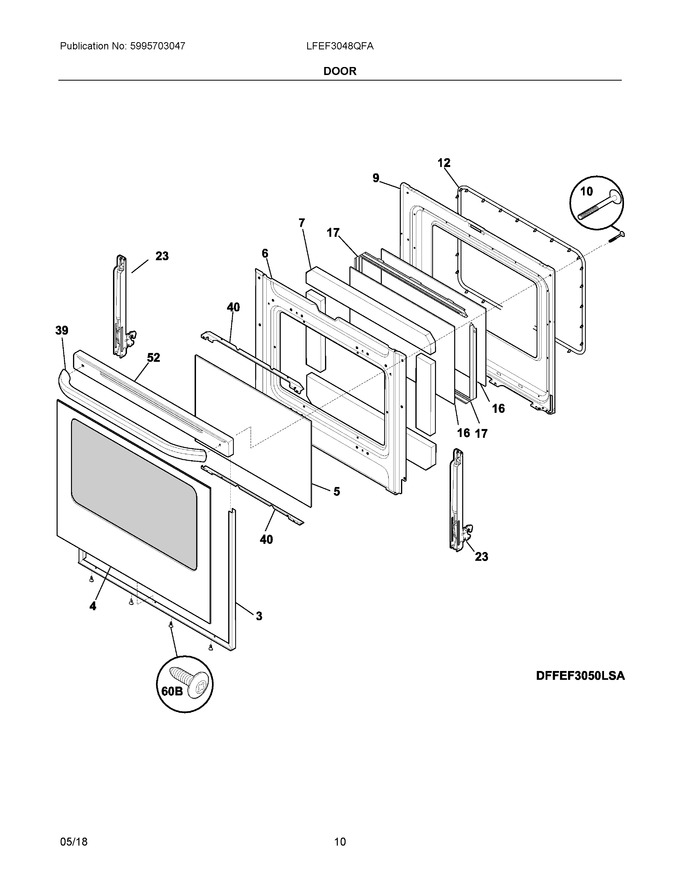

05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935377 | Trim Kit-door, 3 Sided, Black, W/tape |
|
Immediately | $ 58.12 | ||||
| 4 | 316453030 | Glass Assembly, Oven Door, W/tape, Outer |
|
$ 518.72 | |||||
| 5 | 316502601 | Glass, Door, Airwash (Replaces: 316502600) |
|
Immediately | $ 207.85 | ||||
| 6 | 316406328 | Shield-wool (Replaces: 316406312) |
|
$ 87.21 | |||||
| 7 | 316405600 | Insulation, Oven Door |
|
$ 76.55 | |||||
| 9 | 5304529999 | Liner, Oven Door (Replaces: 316423707) |
|
$ 147.12 | |||||
| 10 | 5304507924 | Screw, Handle Mtg, 10-24 X 2.188, (2) (Replaces: 316513301) |
|
Immediately | $ 16.48 | ||||
| 12 | 316405000 | Seal, Oven Door |
|
Immediately | $ 179.17 | ||||
| 16 | 5304503232 | Glass, Oven Door, Inner (Replaces: 316117503) |
|
$ 116.95 | |||||
| 17 | 5304504811 | Spacer, Door Glass, (2) (Replaces: 316559901) |
|
Immediately | $ 25.02 | ||||
| 23 | 316575911 | Hinge, Oven Door, Brown |
|
$ 103.14 | |||||
| 39 | 316558201 | Handle, Door, Stainless |
|
$ 174.23 | |||||
| 40 | 316530403 | Bracket-airwash Glass Wash |
|
$ 33.18 | |||||
| 52 | 316575501 | Cap, Door Trim, Black |
|
$ 110.73 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316483102 | Label, Anti-tip (Replaces: 316483100) |
|
$ 3.56 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
