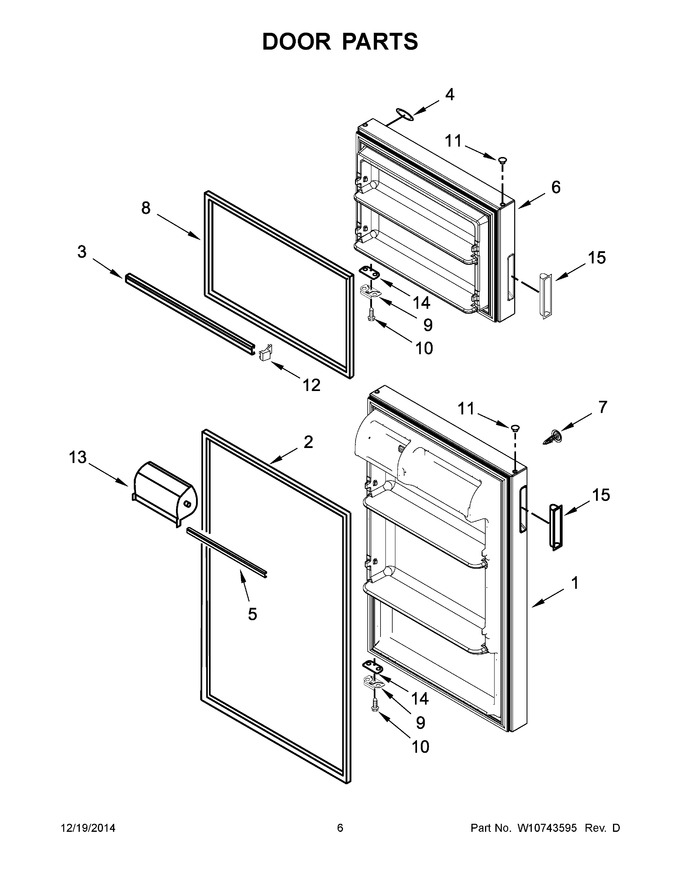

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10573330 | Refrigerator Door (includes Illustration 2 & Door Handle) (white) (Replaces: W10573330) |
|
$ 622.68 | |||||
| 2 | 2319266W | Door Gasket, Magnetic (white) (Replaces: 2264729) |
|
$ 295.55 | |||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 4 | W11428492 | Badge, Amana (Replaces: W10200425) |
|
$ 71.63 | |||||
| 5 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 109.15 | ||||
| 6 | LW10573333 | Freezer Door (includes Illustration 8 & Door Handle) (white) (Replaces: W10573333) |
|
$ 588.53 | |||||
| 7 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 8 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 135.93 | ||||
| 9 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 10 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 11 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 13 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 14 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 15 | W10182940 | Handle, Cup (white) |
|
$ 62.06 |
