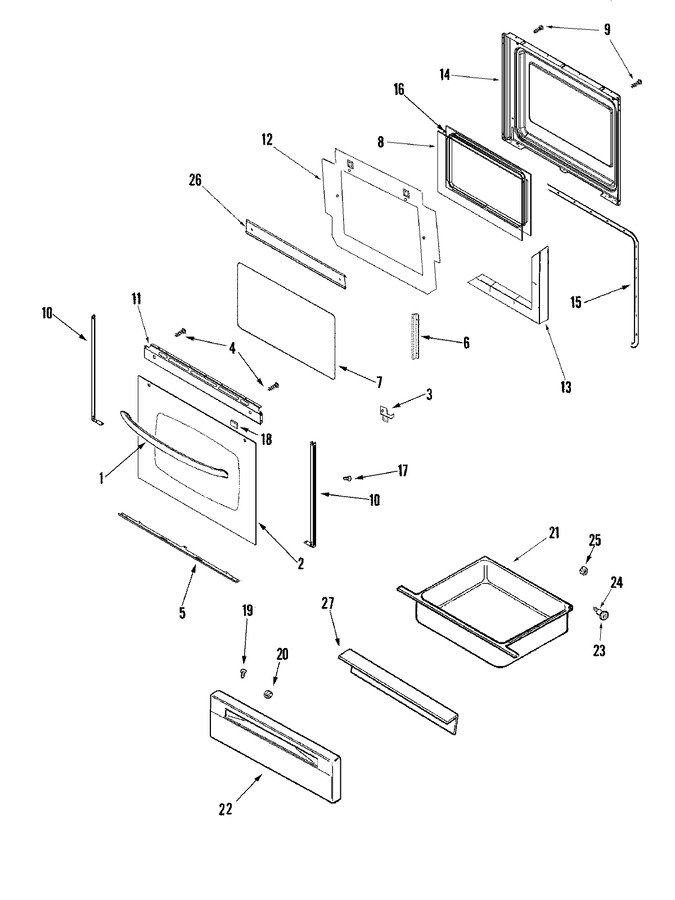

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008318		Handle, Door (blk)	10	Appelez-nous	-
2	74011344		Panel, Door/glass Asy. (slv)	10	Appelez-nous	-
3	3801F832-45		Bracket, Door Handle (lt)   (Replaces: 74009699)	10			$ 19.12
3	74010267		Spacer, Rubber (blk-square)	10			$ 8.34
3	3801F831-45		Bracket, Door Handle (rt)   (Replaces: 74009698)	10			$ 19.17
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
5	74009686		Support, Glass (blk)	10	Appelez-nous	-
5	WP74004224		Tape, Single Sided (wht)   (Replaces: 74004224)	10			$ 10.53
6	74003650		Retainer, Glass	10	Appelez-nous	-
7	74003649		Glass, Door	10	Appelez-nous	-
8	74003645		Glass, Inner	10		Immediately	$ 162.53
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74009693		Trim, Door (blk-lt)	10	Appelez-nous	-
10	74009692		Trim, Door (blk-rt)	10	Appelez-nous	-
11	74009689		Trim, Door Top (blk)	10	Appelez-nous	-
11	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
12	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
12	74011339		Baffle, Oven Door	10	Appelez-nous	-
12	3601F373-51		Baffle, Oven Door   (Replaces: 74011457)	12			$ 244.22
13	74003647		Insulation, Oven Door	10	Appelez-nous	-
14	74011456		Lining, Door	12	Appelez-nous	-
14	74003642		Lining, Door	10	Appelez-nous	-
14	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
14	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	74003644		Frame, Glass	10	Appelez-nous	-
18	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
18	74010267		Spacer, Rubber (blk-square)	12			$ 8.34
18	W11233072		Screw, 8 X 1/2   (Replaces: 74002979)	12		Immediately	$ 12.62
19	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
21	74008337		Drawer, Storage	10			$ 171.37
22	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
22	74010880		Panel, Drawer Asy. (stl-gas)	10	Appelez-nous	-
23	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
24	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
25	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
26	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
26	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
27	74010837		Shield, Door Heat	10	Appelez-nous	-
