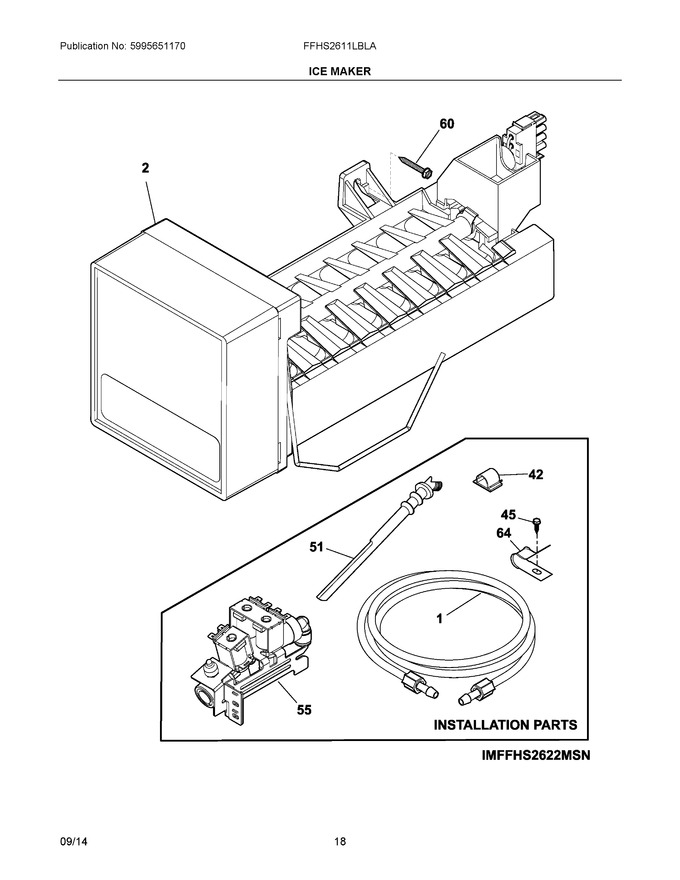

FFHS2611LBLA | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	218976409	Tube, Water, 60", Natural, Door		Immediately	$ 60.25
2	241798231	Ice Maker, Radius Cube, Service, 115 V, Complete (Replaces: 241798201)		Immediately	$ 200.97
45	5304455650	Screw, Hex Washer Head, 8-15a X 0.625, Low Profile			$ 14.18
51	241796405	Tube-water Fill, Extension (Replaces: 241796401)			$ 18.43
55	242252702	Valve-water, Triple Solenoid (Replaces: 241734302)		Immediately	$ 132.71
60	5304455852	Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328)			$ 12.76
61	218721500	Bracket-leveling, Ice Maker (Replaces: 5304456686)			$ 73.00
62	5304456687	Screw-im Brkt Mtg, Pan Hd Phillips, 8-32t X 0.375	Appelez-nous	-
64	5304455846	Clamp, 0.31 Id, Steel, Copper Wtr Line (Replaces: 5303001549)			$ 10.63
NI	5304456693	Nut, M 3.5			$ 13.46
NI	5304456689	Washer (Replaces: 5304456737)			$ 77.26
NI	241798231	Ice Maker, Radius Cube, 115 V, Svce (Replaces: 241642501)		Immediately	$ 200.97
NI	241806601	Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001)		Immediately	$ 70.56
NI	5304456666	Screw, M 3x20 #2, (6)	Appelez-nous	-
NI	5304456688	Terminal	Appelez-nous	-
NI	5304456692	Washer	Appelez-nous	-
NIA	218709101	Screw, Hex Head, 10-32 X 0.500			$ 6.38
NIA	218976419	Tube-water Inlet, 5/16 - 34", Yellow, Valve To Door			$ 22.68
NIB	218976429	Tube-water Inlet, 5/16 - 97.50", Brown/tan			$ 40.40
NIB	240363602	Screw-shoulder			$ 13.65
NIC	240542901	Cap-water Valve			$ 18.95
NIC	241850615	Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915)			$ 34.73
NID	240561701	Seal-water Inlet, Inlet Valve, To Ice Maker		Immediately	$ 20.56
