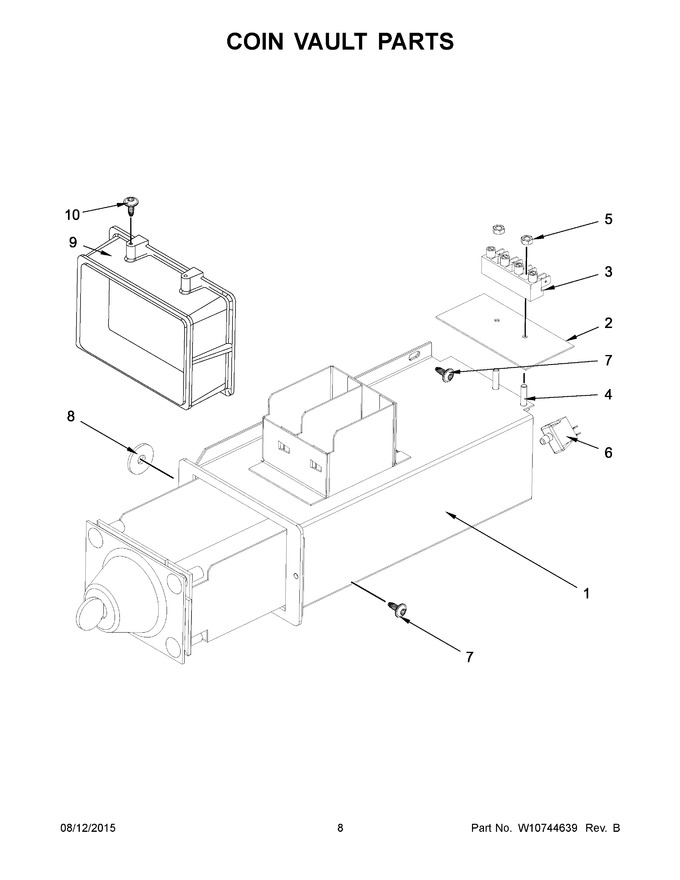

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725469 | Coin Vault |
|
- | |||||
| 2 | 23001115 | Terminal Block Insulation |
|
- | |||||
| 3 | 23001113 | Terminal Block |
|
- | |||||
| 4 | 23004095 | Bolt M4x16 |
|
- | |||||
| 5 | 23003666 | Nut M4 |
|
- | |||||
| 6 | 23003656 | Switch, Coin Box |
|
- | |||||
| 7 | W10711800 | Screw M4x11 |
|
- | |||||
| 8 | W10431220 | Washer |
|
- | |||||
| 9 | W10712166 | Vault Bezel |
|
- | |||||
| 10 | 23003114 | Bolt M4x8 |
|
- |
