01 - Cover Sheet

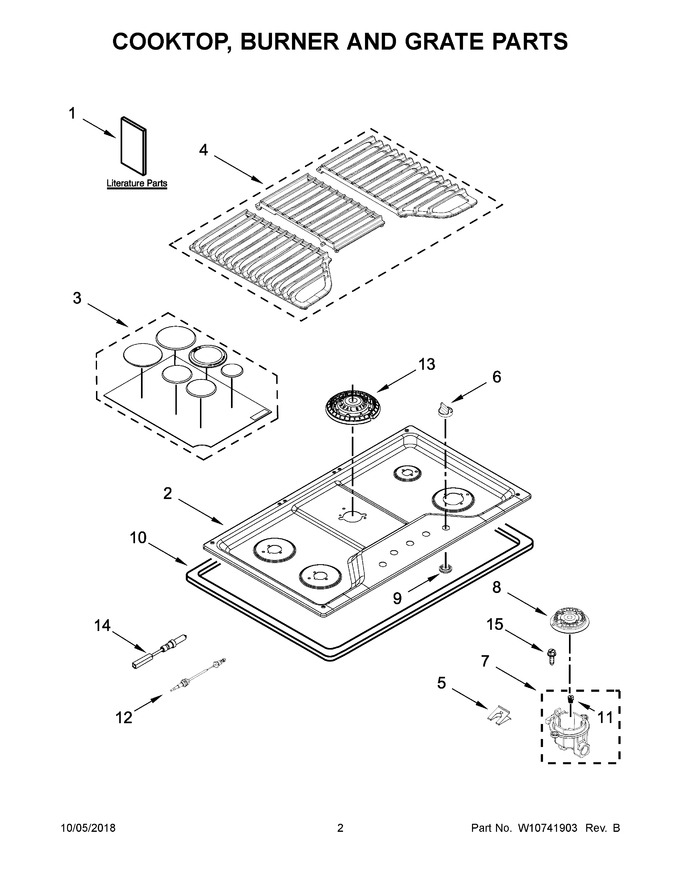

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11116972 | Instructions, Installation |
|
- | |||||
| 2 | W11314790 | Cooktop (stainless) (Replaces: W10675919) |
|
- | |||||
| 3 | W10695055 | Kit, Burner Cap (black) |
|
$ 165.11 | |||||
| 4 | W11241678 | Kit, Grate (black) (Replaces: W10695109) |
|
$ 405.25 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 6 | W11190813 | Knobs, Cooktop (black) (Replaces: W10675915) |
|
$ 64.80 | |||||
| 7 | W10597166 | Holder, Orifice (9.1k) (left Front & Left Rear) |
|
$ 63.25 | |||||
| 8 | WP8286814 | Head, Burner (left Front, Left Rear & Right Front) (Replaces: 8286814) |
|
$ 106.79 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 7.81 | |||||
| 10 | 9760045 | Seal, Foam |
|
$ 236.42 | |||||
| 11 | W10652710 | Orifice (left Front & Left Rear) |
|
$ 23.37 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front & Right Front) (Replaces: W10541842) |
|
$ 52.13 | |||||
| 13 | W10811599 | Head, Burner (Replaces: W10611434) |
|
$ 186.16 | |||||
| 14 | W10852959 | Electrode, Stack (center) (Replaces: W10763330) |
|
Immediately | $ 66.09 | ||||
| 15 | W11676349 | Screw, Burner Rail (m4) (Replaces: 8286921) |
|
Immediately | $ 12.65 | ||||
| 11A | W10791076 | Orifice (right Front) (Replaces: W10151347) |
|
$ 85.86 | |||||
| 11B | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 77.40 | |||||
| 11C | W10791073 | Orifice (center, Main) (Replaces: W10609592) |
|
$ 80.11 | |||||
| 11D | W10652706 | Orifice (center, Simmer) |
|
$ 85.68 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear & Right Rear) (Replaces: W10541843) |
|
Immediately | $ 52.19 | ||||
| 1A | W10713733 | Instructions, Undercounter |
|
- | |||||
| 1B | W11116968 | Guide, Use And Care |
|
- | |||||
| 1C | W11117755 | Instructions, Lp Conversion |
|
- | |||||
| 7A | W10613381 | Holder, Orifice (10k) (right Front) |
|
$ 61.77 | |||||
| 7B | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 33.26 | |||||
| 7C | W10611441 | Holder, Orifice (17k) (center) |
|
$ 64.51 | |||||
| 8A | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 85.50 |
