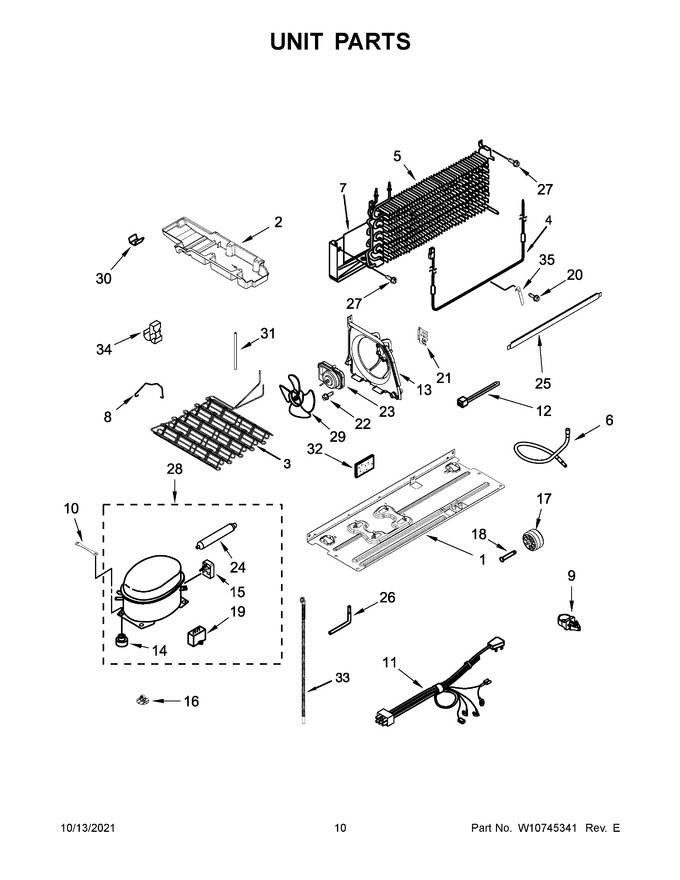

06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Baseplate (Replaces: W10300118) |
|
$ 120.13 | |||||
| 2 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 130.24 | |||||
| 3 | W10609393 | Condenser |
|
$ 186.94 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 221.07 | ||||
| 5 | W10836706 | Assembly, Evaporator (Replaces: W10570565) |
|
Immediately | $ 258.64 | ||||
| 6 | W10510988 | Tube, Suction |
|
$ 55.17 | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 86.86 | |||||
| 8 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 10.17 | ||||
| 9 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 10 | W10236396 | Strap, Compressor |
|
Immediately | $ 17.84 | ||||
| 11 | W11625681 | Harness, Unit (Replaces: W11430967) |
|
$ 97.57 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 13 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 75.42 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 6.47 | ||||
| 15 | WPW10448874 | Device, Start (Replaces: W10448874) |
|
Immediately | $ 122.47 | ||||
| 16 | W10815861 | Clip, Bottom Cover |
|
$ 13.55 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | W11179313 | Capacitor (Replaces: W10590088) |
|
$ 104.90 | |||||
| 20 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 20.09 | |||||
| 22 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 166.55 | ||||
| 24 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 47.31 | ||||
| 25 | W10300902 | Cover, Heater |
|
$ 25.34 | |||||
| 26 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 93.10 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 28 | W10233960 | Compressor (Replaces: W10575980) |
|
Immediately | $ 462.29 | ||||
| 29 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 86.99 | ||||
| 30 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 16.61 | |||||
| 31 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 56.20 | ||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 33 | W10475011 | Tube, Drain |
|
$ 27.24 | |||||
| 34 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 9.53 | |||||
| 35 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 17.24 | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 82.22 | ||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 117.64 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 115.28 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 94.73 |
