SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

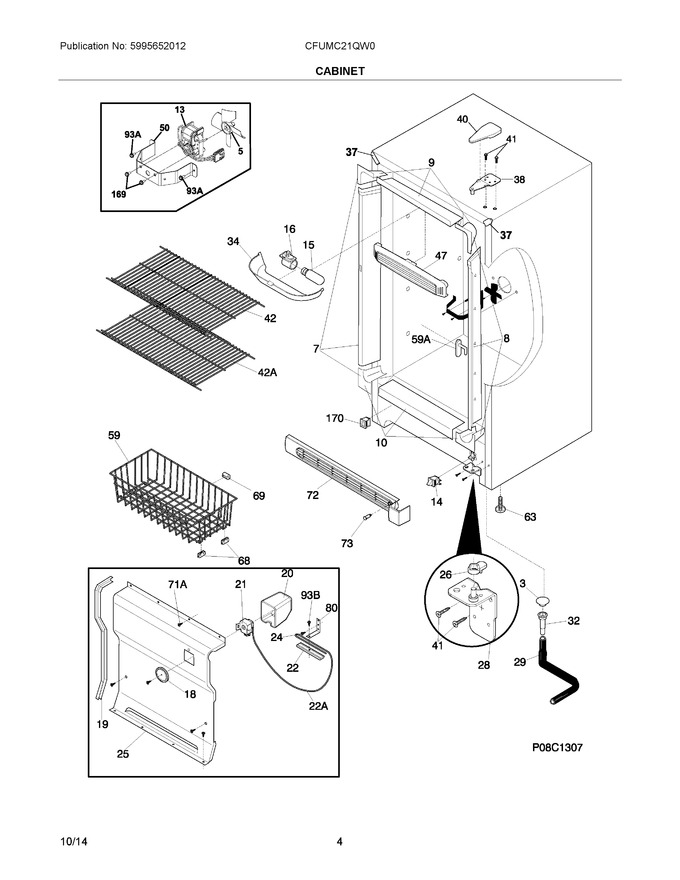

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
7	297435605		Breaker				$ 51.57
8	297435604		Breaker, U21, W/lock				$ 58.50
9	297403901		Breaker, Top				$ 55.42
10	297403902		Breaker, Bottom				$ 60.82
13	297250001		Motor-fan, 115v				$ 165.80
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	216707200		Knob, Temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	297013800		Cover-control Housing				$ 80.43
21	5304514707		Control-temperature   (Replaces: 297216034)			Immediately	$ 70.49
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297442700		Cover, Evaporator		Appelez-nous	-
26	297415900		Ramp, Door Closer			Immediately	$ 24.74
28	297416301		Hinge, 1/2" Pin, Bottom Rh   (Replaces: 297416300)				$ 15.18
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 297382000)				$ 13.74
34	297184400		Shield-light				$ 21.16
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297441904		Shelf, 16.69 X 27.88, Wire				$ 93.98
59	5304497658		Basket				$ 117.85
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide-basket				$ 35.25
69	5305878546		Bumper-basket				$ 7.23
72	297387921		Grille/kickplate   (Replaces: 297387902)				$ 60.96
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
80	06594601		Bracket, Control				$ 17.64
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 60.96
42A	5304528978		Shelf, 12.50 X 27.88, Wire   (Replaces: 297441903)				$ 96.16
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	5304495605		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
