01 - Cover Sheet

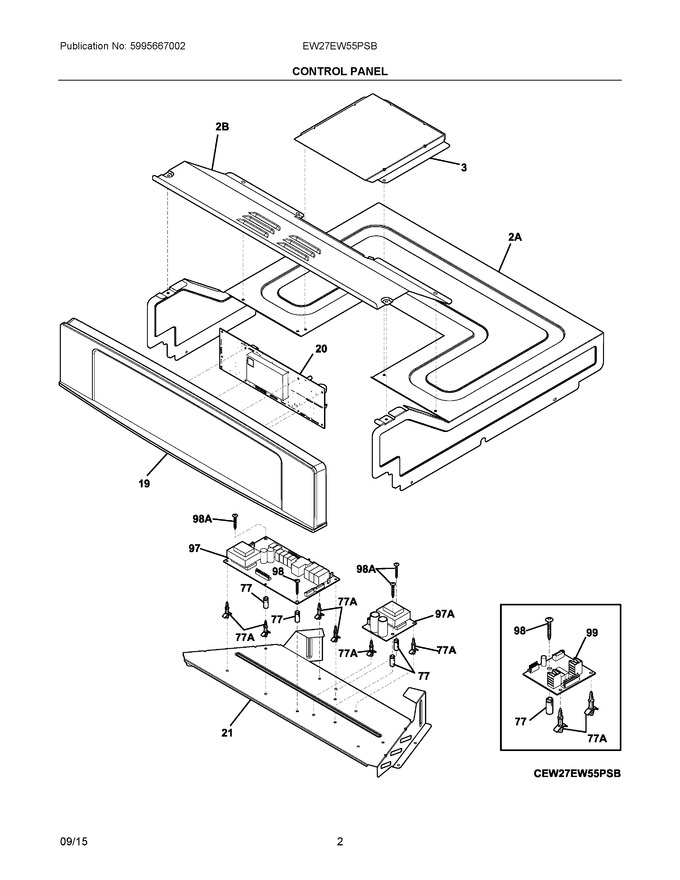

02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577800		Box, Fan Service		Appelez-nous	-
19	139034533		Control Panel, Assembly, Black/stainless				$ 1,554.47
20	316576697		Controller, Electronic, Es630w12   (Replaces: 316576659)				$ 452.84
21	139028000		Bracket, Mounting				$ 63.00
77	316247900		Spacer, Power Board				$ 44.65
97	316443941		Board, Relay				$ 367.70
98	5304401490		Screw, 6-18 X 1, (2)		Appelez-nous	-
99	316519205		Board, Relay, Convection, Triac				$ 256.95
2A	139003601		Cover, Oven Top		Appelez-nous	-
2B	139003701		Cover, Control Access				$ 33.31
77A	316114100		Spacer				$ 60.96
97A	316535201		Board, Power Supply, 8v				$ 349.42
98A	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5304496650		Harness, Wiring, Communication, & Door Ltch Mtr				$ 178.61
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	318165800		Spacer				$ 17.72
NIA	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
