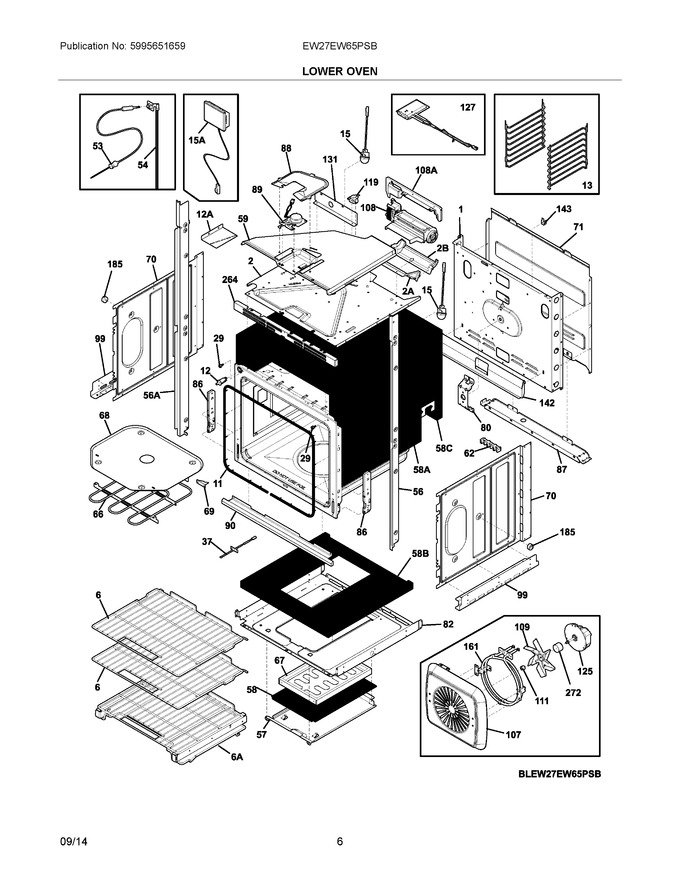

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139003801		Panel, Main Back		Appelez-nous	-
2	139027803		Shield, Insulation, Top		Appelez-nous	-
6	808713918		Rack Assembly, Ladder, Cobalt, W/handle		Appelez-nous	-
11	807545503		Seal, Oven Door, Gray				$ 85.76
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	808713902		Ladder Assembly, Kit, Cobalt, W/2 Ladders				$ 90.88
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517601		Bumper, Main Front, Cobalt Blue		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
53	5304503737		Probe, Meat Temp, Black   (Replaces: 318601306)				$ 99.33
54	139017203		Receptacle Assy, Meat Probe   (Replaces: 139017200)			Immediately	$ 153.09
56	318903616		Trim, Side Filler, Stainless, Rh				$ 146.06
57	139021200		Panel, Service, Bake Element				$ 32.31
58	139022100		Insualtion, Bake Element		Appelez-nous	-
59	139015700		Duct, Cooling, Lower Oven		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	5304523477		Element, Broil, 6 Pass, 3400w   (Replaces: 139028200)				$ 235.85
67	318902502		Element, Hidden Bake, 1450w			Immediately	$ 205.21
68	808807902		Shield, Broil Element		Appelez-nous	-
69	139022500		Bracket, Element Guide		Appelez-nous	-
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139022000		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
82	139003101		Shield, Insulation, Lower				$ 91.01
86	139026900		Receptacle, Hinge, Dual Spring				$ 32.61
87	139021900		Bracket, Cable Mtg.		Appelez-nous	-
88	139038700		Cover, Latch Motor, Lower Oven		Appelez-nous	-
89	139021302		Motor, Latch Assy., 2 Pole				$ 147.56
90	318903535		Trim, Oven Bottom, Stainless				$ 357.21
99	318256201		Bracket, Side, Bottom, (2)				$ 56.70
107	139013902		Cover, Convection Fan				$ 120.54
108	139038301		Blower Assembly, Cooling, Cross Flow, W/baffle				$ 188.21
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	139008504		Motor, Convection Fan, 2400 Rpm, 2 Speed   (Replaces: 139008503)			Immediately	$ 170.57
127	807123502		Catalyst, Oven Vent		Appelez-nous	-
131	139015200		Cover, Center Rear, Cross Flow		Appelez-nous	-
142	139021800		Shield, Air Deflector, Main Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 47.63
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139013501		Trim, Center Vent, Black		Appelez-nous	-
272	139021700		Tube, Convection Fan				$ 17.72
108A	139015300		Bracket, Fan Mtg., Cross Flow		Appelez-nous	-
12A	807641201		Shield, Door Switch				$ 64.49
15A	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
2A	139015900		Shield, Fan, Cross Flow		Appelez-nous	-
2B	139038901		Housing, Fan, Air Diverter				$ 31.19
56A	318903617		Trim, Side Filler, Stainless, Lh				$ 139.02
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58B	139021501		Insulation, Oven Bottom				$ 31.19
58C	139021401		Insulation, Oven Back		Appelez-nous	-
6A	808713910		Glide Rack, Assembly, Cobalt, W/handle				$ 357.21
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	318165800		Spacer				$ 17.72
NI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
NI	5304498544		Harness, Wiring, Main		Appelez-nous	-
NI	316303501		Harness Assembly, Filter, Electrical, W/capacitors				$ 84.91
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NIA	318231870		Wiring Harness, Bake Element				$ 83.42
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	807181801		Wiring Harness, Latch Motor, Lower Oven		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	139022101		Insualtion, Noise Dampening		Appelez-nous	-
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIB	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.12
NIB	316021119		Screw, Ab Nickel, 8-18 X 11/16		Appelez-nous	-
