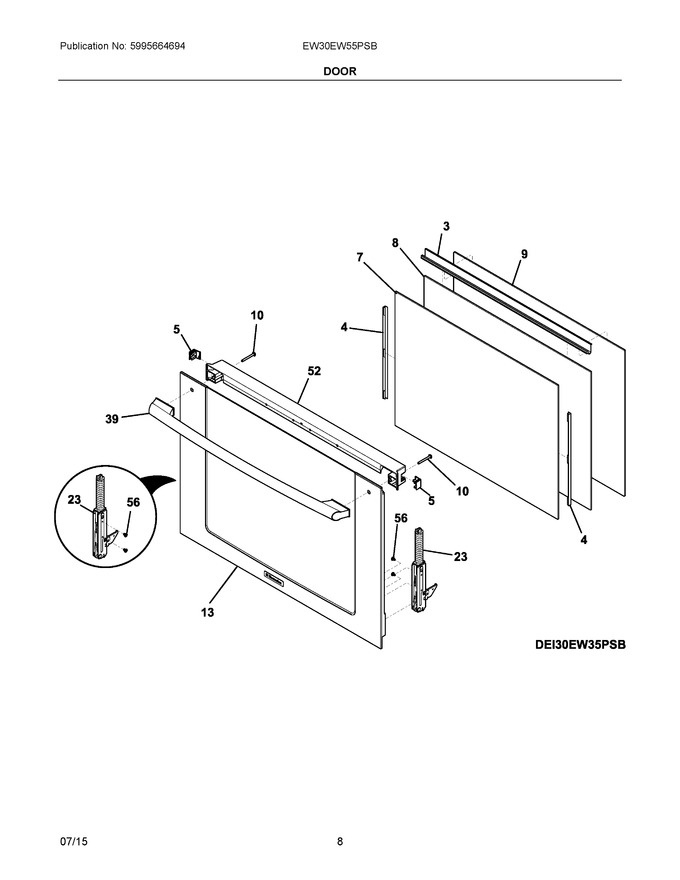

SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304491779		Spacer, Door Glass, Top				$ 27.64
4	808983501		Spacer, Door Glass, Silicone, (2)			Immediately	$ 28.96
5	139010800		Cap, Screw Hole, Trim, (2)				$ 16.30
7	139010501		Glass, Thermal, Inner, #2				$ 168.69
8	139010500		Glass, Thermal, Inner, #1				$ 175.94
9	5304505655		Glass, Door, Inner   (Replaces: 139010402)				$ 480.29
10	316439507		Screw, Handle Mtg., 10-24 X 1.77", (2)				$ 21.97
13	808950021		Door Assembly, Outer, Stainless/black, W/trim & Badge				$ 863.08
23	139010302		Hinge, Door, Yellow, Dual Spring				$ 121.91
39	316380802		Handle, Door, Stainless				$ 250.86
52	5304494448		Trim Assembly, Door, Top				$ 157.74
56	807286001		Screw, Hinge, 10-32 X 1/4", (4)				$ 12.02
NI	318163602		Cleaner, Stainless Steel				$ 26.51

    View Diagram in Separate Window       Print Part List
