SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

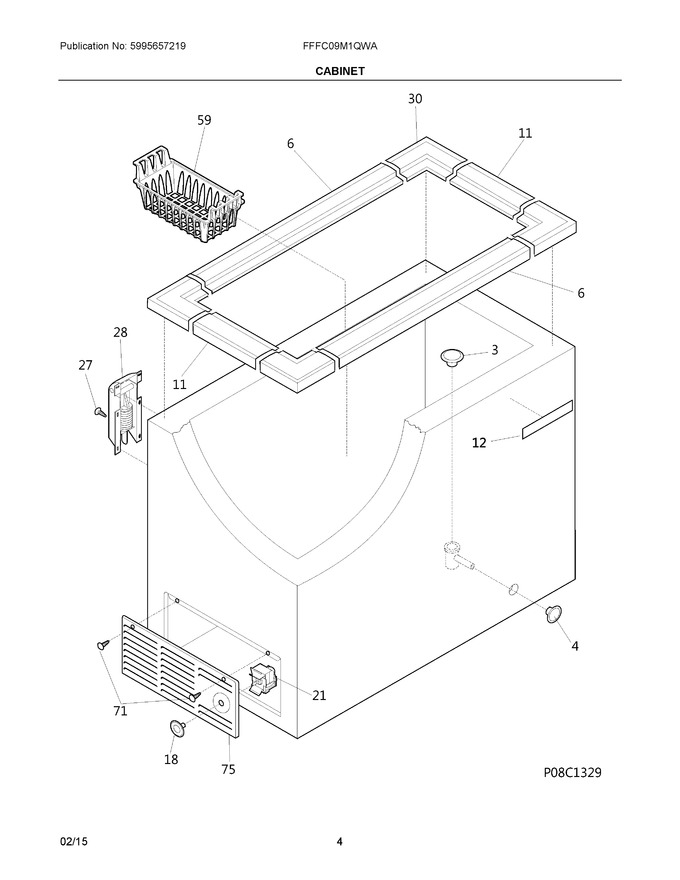

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	297400604		Breaker		Appelez-nous	-
11	297400606		Breaker, White, Chest End, (2)		Appelez-nous	-
12	242062801		Nameplate, White				$ 11.65
18	216707200		Knob, Temp Control				$ 44.10
21	5304496559		Control-temperature   (Replaces: 297216000)			Immediately	$ 44.18
27	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
28	297313200		Hinge Assy				$ 42.79
30	297400500		Breaker-corner, White		Appelez-nous	-
59	216848200		Basket				$ 53.21
71	5304463819		Screw, Ab, 8-18x3/8				$ 1.27
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
75	297412700		Panel, Access, White				$ 36.25
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	5304495492		Energy Guide		Appelez-nous	-
NI	5304493735		Wire Guard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
