SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

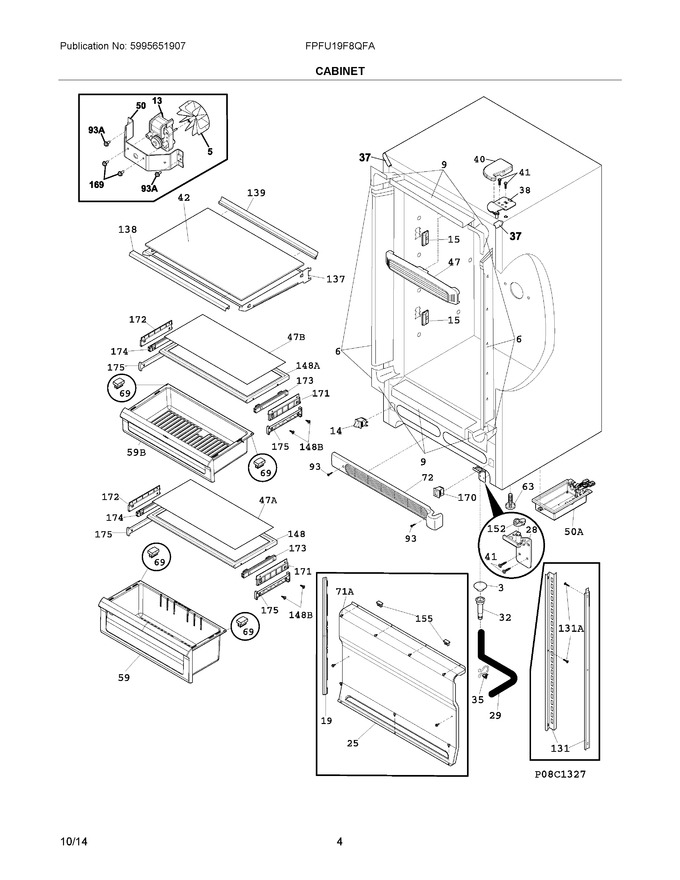

03 - Cabinet


04 - System


05 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
13	297436500		Motor, Fan		Appelez-nous	-
14	216822900		Switch, Light/lamp, Ramp   (Replaces: 216822901)			Immediately	$ 70.16
15	241891103		Light-led				$ 59.85
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	5304497788		Controller, Electronic				$ 311.85
25	297099255		Cover-evaporator				$ 86.36
28	5303018741		Hinge-lower, Lh W/bearing   (Replaces: 297302511)			Immediately	$ 42.12
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	297165800		Pan-drain				$ 89.15
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273903		Trim-cabinet Corner, Silver Mist, (2)		Appelez-nous	-
38	297303901		Hinge-upper, Lh				$ 23.49
40	297304001		Cover-hinge, Gray, Lh				$ 73.00
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297265900		Glass-shelf				$ 156.15
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket, Fan Motor Mount				$ 22.75
59	A11791811		Bin, Crisper, Assy   (Replaces: 297295702)				$ 211.52
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
69	297297300		Bumper, Crisper		Appelez-nous	-
72	297036907		Grille/kickplate, 32", Gray   (Replaces: 297036904)				$ 39.29
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
107	297165400		Shield, Compressor, Compartment				$ 19.85
131	297130200		Channel-shelf Mtg, Side, (2)				$ 55.99
137	297050600		Frame-shelf, Cantilever, (2)			Immediately	$ 179.29
138	297261400		Trim-shelf, Front				$ 33.18
139	297261500		Trim-shelf, Rear				$ 26.04
148	297271700		Frame-crisper Cover				$ 215.20
152	297302700		Bearing-hinge		Appelez-nous	-
155	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280403		Valve, Breather				$ 21.69
171	297092700		Bracket, Crisper Cover, Rh				$ 55.36
172	297092701		Bracket, Crisper Cover, Lh				$ 56.88
173	5304515502		Slide, Crisper, Rh, W/clips   (Replaces: 297291210)				$ 77.36
174	5304515501		Slide, Crisper, Lh, W/clips   (Replaces: 297291211)				$ 78.08
175	297099500		Support, Crisper			Immediately	$ 47.03
131A	297146821		Screw, Th, 8-18x.470 Ab Qx, White, (6)				$ 4.94
148A	297271701		Frame-crisper Cover, Lower				$ 194.30
148B	297142600		Screw, Blunt, 8-32 X 5/8				$ 13.01
47A	297102705		Glass, Crisper Cover				$ 141.04
47B	297102704		Glass, Crisper Cover				$ 146.76
50A	297436400		Bracket-fan Motor				$ 11.34
50A	241891608		Board-led Power				$ 272.06
59B	297292302		Drawer, Deli-assy				$ 182.44
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	297333510		Trim Kit, Built In, Single, Complete, Trimkitss1		Appelez-nous	-
NI	297333610		Trim Kit, Built In, Dual, Complete, Trimkitss2		Appelez-nous	-
NI	5304495539		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297048000		Screw, Anchor, #8, White				$ 12.05
NI	297436200		Grommet				$ 7.79
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
