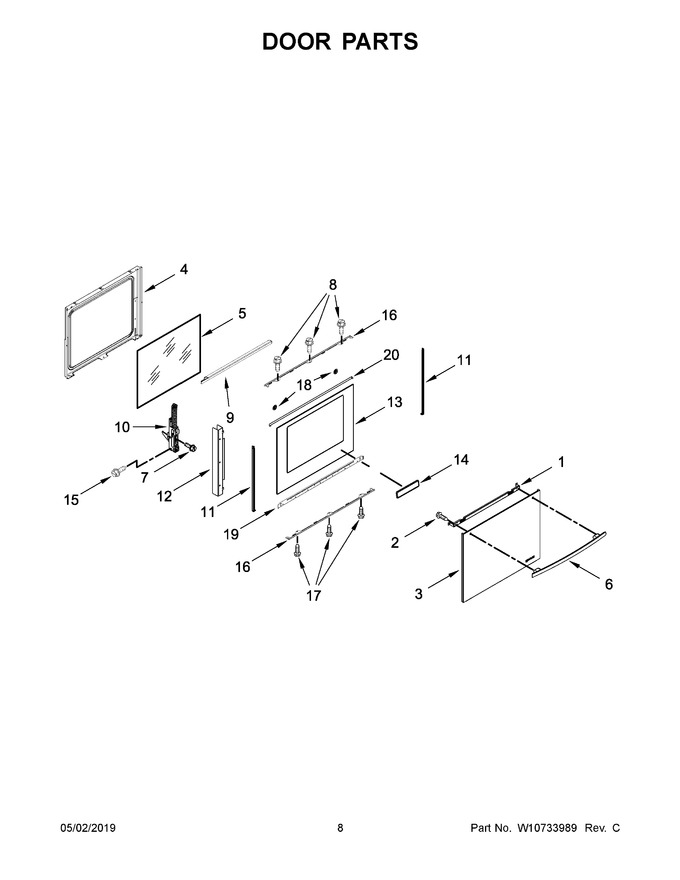

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10541911		Bracket, Glass Upper Handle			Immediately	$ 34.22
2	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.16
3	W10541871		Assembly, Outer Door (stainless)		Appelez-nous	-
4	W10541882		Liner, Door				$ 177.73
5	WPW10541888		Glass, Inner   (Replaces: W10541888)				$ 329.70
6	W10550998		Assembly, Door Handle (black)		Appelez-nous	-
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
8	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 12.65
9	W11251351		Scoop, Door (black)   (Replaces: W10613791)			Immediately	$ 119.72
10	W11104737		Hinge, Slow Close (black Models)   (Replaces: W10541887)				$ 97.74
11	W10634236		Trim, Door Side (black)		Appelez-nous	-
12	W10541883		Hinge, Support Rail				$ 38.48
13	WPW10541892		Assembly, Outer Door (black)   (Replaces: W10541892)				$ 353.76
14	WPW10214168		Badge (black)   (Replaces: W10190724)				$ 73.67
15	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.26
16	W10541885		Support, Glass				$ 36.93
17	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
18	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 12.69
19	W10541912		Bracket, Lower Glass		Appelez-nous	-
20	W10634234		Door, Trim Top		Appelez-nous	-
10A	W10541886		Hinge, Slow Close (stainless Models)				$ 187.29
14A	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 73.67
6A	W11195001		Assembly, Door Handle (stainless)   (Replaces: W10551013)				$ 196.68
9A	W11025120		Scoop, Door (stainless)   (Replaces: W10551024)				$ 105.44

    View Diagram in Separate Window       Print Part List
