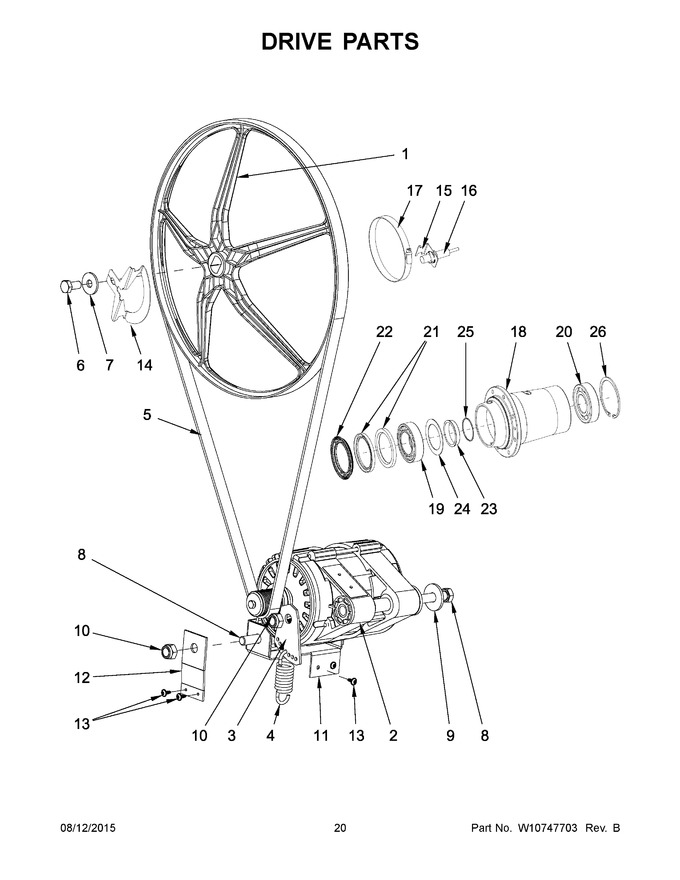

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725737		V-pulley Drum		Appelez-nous	-
2	W10725747		Motor (230v/75hz)		Appelez-nous	-
3	W10725752		Spring Holder		Appelez-nous	-
4	23004156		Spring, Tension		Appelez-nous	-
5	W10725758		Belt		Appelez-nous	-
6	23002278		Bolt M16x30		Appelez-nous	-
7	W10654354		Motor Pulley Washer		Appelez-nous	-
8	W10713999		Bolt M12x220		Appelez-nous	-
9	23004146		Washer M12		Appelez-nous	-
10	W10357141		Nut M12		Appelez-nous	-
11	W10725767		Motor Holder		Appelez-nous	-
12	W10725782		Holder		Appelez-nous	-
13	W10711800		Screw M4x11		Appelez-nous	-
14	W10747778		Plate, Speed Sensor		Appelez-nous	-
15	W10747779		Bracket, Speed Sensor		Appelez-nous	-
16	W10747780		Speed Sensor		Appelez-nous	-
17	W10748075		Hose Clamp (140-160)		Appelez-nous	-
18	W10725788		Bearing Housing		Appelez-nous	-
19	23003073		Bearing (nu 2215 Ec)		Appelez-nous	-
20	23003614		Bearing (6310)		Appelez-nous	-
21	23003850		Ring Seal 100x130x10		Appelez-nous	-
22	W10714026		Ring Seal 100x130/144x9/12		Appelez-nous	-
23	W10714059		Mounting Cone		Appelez-nous	-
24	W10714069		Seal, Grease Ring		Appelez-nous	-
25	23003072		Inner Snap Ring		Appelez-nous	-
26	23004047		Retaining Ring (110)				$ 25.98
2A	W10725748		Motor (400v/76hz)		Appelez-nous	-
