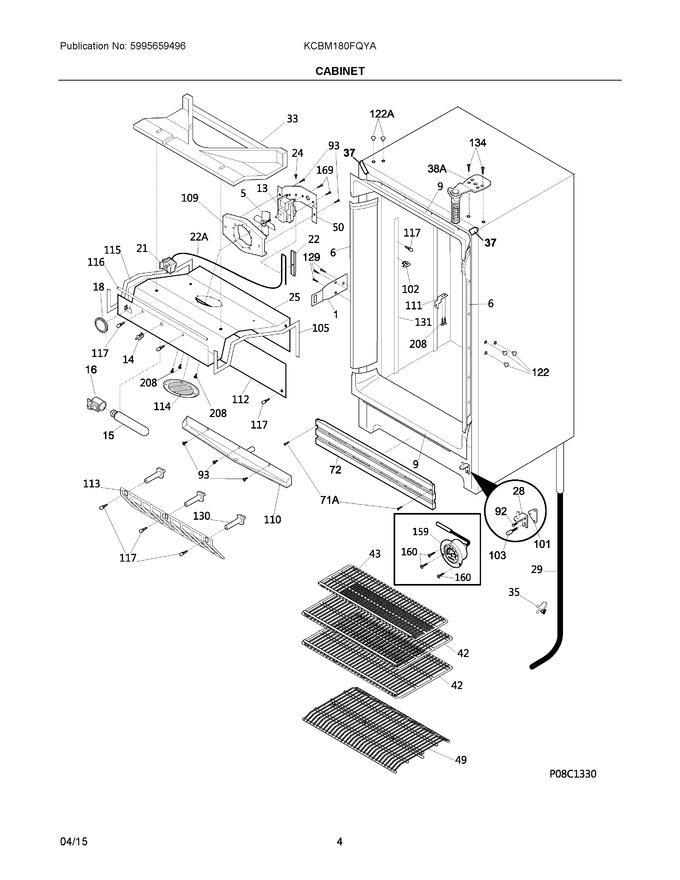

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297222500		Lock-catch		Appelez-nous	-
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	297243800		Switch, Light/lamp, Plunger				$ 36.68
15	5304517886		Lamp, Blue, 40 Watt, 130 Volt   (Replaces: 216518101)			Immediately	$ 73.06
16	297139500		Socket, Light/lamp				$ 18.08
18	216591506		Knob, Temp Control   (Replaces: 216591501)				$ 29.06
21	297216041		Control-temperature   (Replaces: 297216017)				$ 46.27
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297421403		Cover, Evaporator				$ 185.59
28	216335600		Hinge-bottom, Stepped Pin				$ 129.83
29	216361901		Hose-drain				$ 93.14
33	297421501		Duct, Air				$ 69.47
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273903		Trim-cabinet Corner, Silver Mist, (2)		Appelez-nous	-
42	5304494905		Shelf, Full Frame				$ 200.26
43	5304494906		Shelf, Cup, Partial				$ 195.19
49	297471401		Trivet				$ 122.62
50	08013207		Bracket-fan Motor				$ 12.92
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297071200		Grille/kickplate				$ 284.34
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Door Stop/hng   (Replaces: 216850900)				$ 13.46
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
105	297439601		Gasket, Evaporator, Rh		Appelez-nous	-
109	297014200		Venturi, Blower				$ 56.44
110	216377000		Pan-drain, Condensate				$ 222.14
111	297141400		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain, Condensate				$ 134.09
113	216383602		Grate-air Intake		Appelez-nous	-
114	297014300		Cover-blower				$ 56.70
115	297439602		Gasket, Evaporator, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216605500		Thumbscrew				$ 13.39
122	215774922		Plug Button, Silver Mist   (Replaces: 215774920)				$ 19.72
129	216393301		Screw-lock Catch, One Way		Appelez-nous	-
130	297244700		Support, Evaporator Mtg				$ 4.26
131	297122000		Shelf-standard				$ 61.05
134	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
159	5304506337		Dial, Thermometer   (Replaces: 297070201)				$ 174.95
160	297096100		Screw, #6-20x.375 Ab, Stainless, Thermo Dial				$ 9.19
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
208	216504500		Screw, Ab, 8-18x.500		Appelez-nous	-
122A	216429602		Plug-button, Black, Upr Hinge Holes		Appelez-nous	-
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 60.96
38A	297215900		Hinge-top, Door Closer				$ 140.25
71A	216395801		Screw, 1/4 20 X 1/2		Appelez-nous	-
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
NI	297001708		Insulation, Drain Tube, 36				$ 13.28
NI	297090800		Label, Freezer		Appelez-nous	-
NI	5303311565		Clip-cable				$ 2.10
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NIA	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
NIA	297069300		Harness, Electrical, Evaporator				$ 68.61
NIA	240494003		Plug, Black   (Replaces: 297095301)				$ 18.20
NIA	297164651		Bracket, Rh Leg Levelor				$ 17.51
NIB	297164650		Bracket, Lh Leg Levelor				$ 18.43
