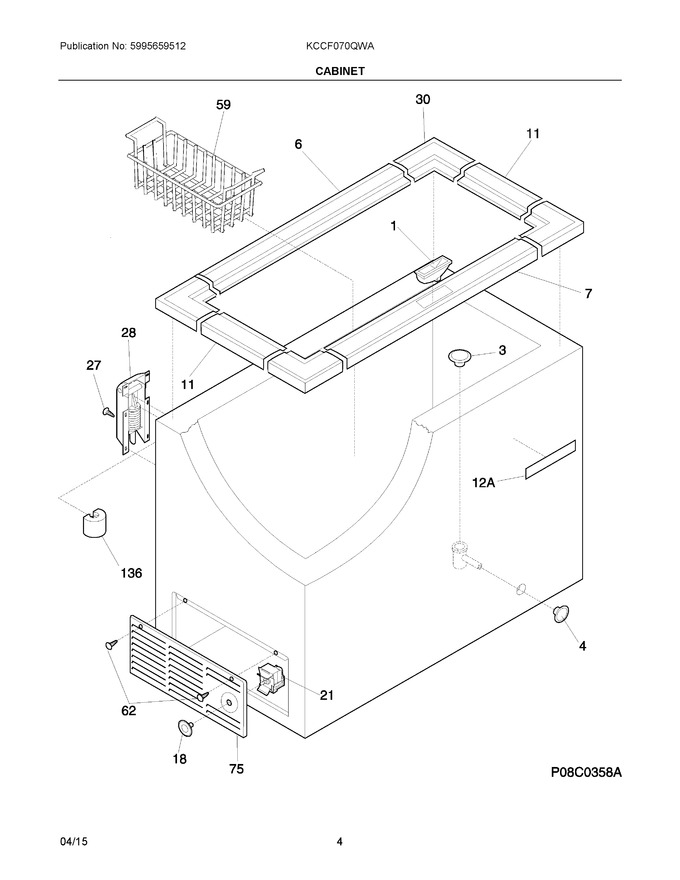

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216954500 | Catch-lock |
|
$ 19.16 | |||||
| 3 | 216502600 | Plug, Drain, Interior |
|
Immediately | $ 17.35 | ||||
| 4 | 297013600 | Plug, Drain, Exterior |
|
$ 9.98 | |||||
| 6 | 297400602 | Breaker |
|
- | |||||
| 7 | 297400603 | Breaker, W/lock |
|
- | |||||
| 11 | 297400606 | Breaker, White, Chest End, (2) |
|
- | |||||
| 18 | 216707201 | Knob, Temp Control |
|
$ 37.54 | |||||
| 21 | 5304496559 | Control-temperature (Replaces: 297216000) |
|
Immediately | $ 44.18 | ||||
| 27 | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 14.41 | |||||
| 28 | 297313200 | Hinge Assy |
|
$ 42.79 | |||||
| 30 | 297400500 | Breaker-corner, White |
|
- | |||||
| 59 | 297118501 | Basket |
|
$ 106.18 | |||||
| 75 | 297412700 | Panel, Access, White |
|
$ 36.25 | |||||
| 136 | 216706700 | Guard-splash |
|
- | |||||
| 12A | 297146601 | Nameplate, Commercial |
|
- | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| NI | 297151500 | Caster Pack, 4 Casters, Wrench, 16 Screws |
|
- | |||||
| NI | 216621000 | Caster |
|
- | |||||
| NI | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| NI | 5304493735 | Wire Guard |
|
- |
