01 - Cover Sheet

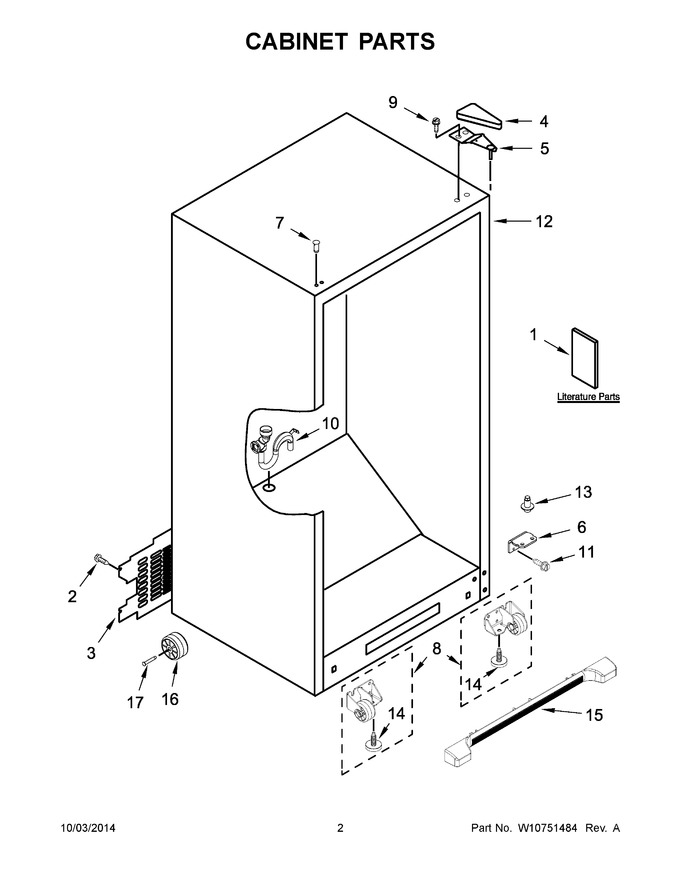

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10668406 | Use & Care Guide |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 3-80732-014) |
|
Immediately | $ 12.62 | ||||
| 3 | W10574323 | Cover, Unit |
|
$ 79.88 | |||||
| 4 | W10853622 | Cover, Hinge (grey) (Replaces: 2254510) |
|
Immediately | $ 70.68 | ||||
| 5 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 6 | W10574262 | Hinge Plate, Bottom (grey) |
|
$ 151.93 | |||||
| 7 | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 6.47 | ||||
| 8 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 32.01 | ||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 10 | W11673435 | Drain Tube (Replaces: W10717194) |
|
Immediately | $ 43.70 | ||||
| 11 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 6.92 | ||||
| 12 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 13 | W11676609 | Hinge Pin, Lower (Replaces: W10574325) |
|
$ 12.76 | |||||
| 14 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.07 | ||||
| 15 | WPW10534165 | Grille, Toe (grey) (Replaces: W10534165) |
|
Immediately | $ 54.81 | ||||
| 16 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 17 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 1A | W10574439 | Energy Guide |
|
- | |||||
| 1B | W10653921 | Tech Sheet |
|
- | |||||
| 8A | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 32.01 |
