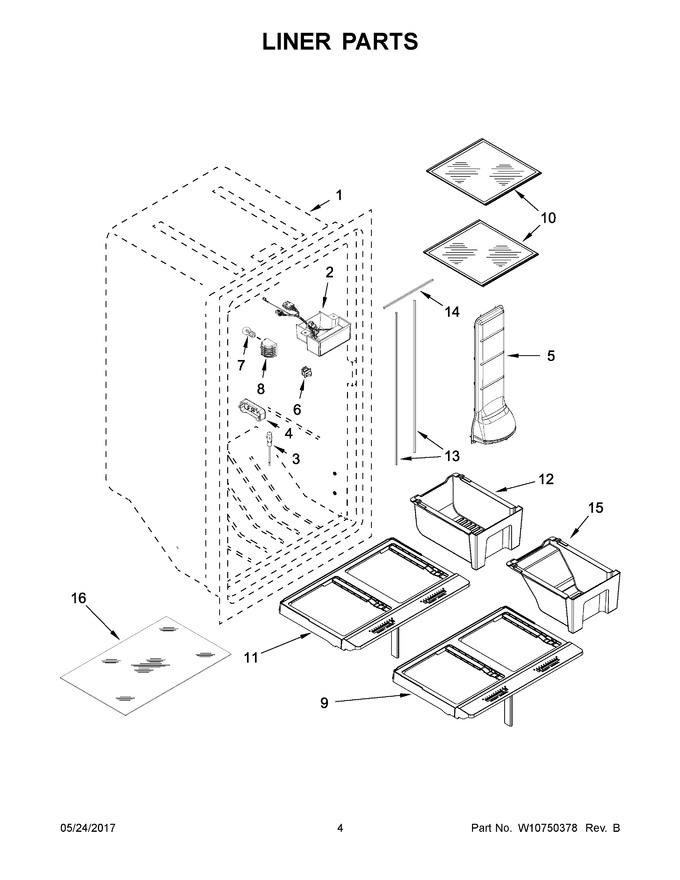

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11441625 | Control Assembly (Replaces: W10701911) |
|
Immediately | $ 71.96 | ||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 115.07 | ||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 38.92 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 74.13 | |||||
| 9 | W10581572 | Crisper Cover, Top |
|
$ 105.75 | |||||
| 10 | W11430610 | Shelf, Deep (Replaces: W10569286) |
|
$ 138.05 | |||||
| 11 | W10591310 | Crisper Cover, Bottom |
|
$ 84.71 | |||||
| 12 | W10654386 | Crisper Pan, Top |
|
$ 136.66 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 | |||||
| 15 | W10654387 | Crisper Pan, Bottom |
|
$ 136.31 | |||||
| 16 | W11428833 | Glass, Crisper (Replaces: W10581574) |
|
Immediately | $ 196.80 |
