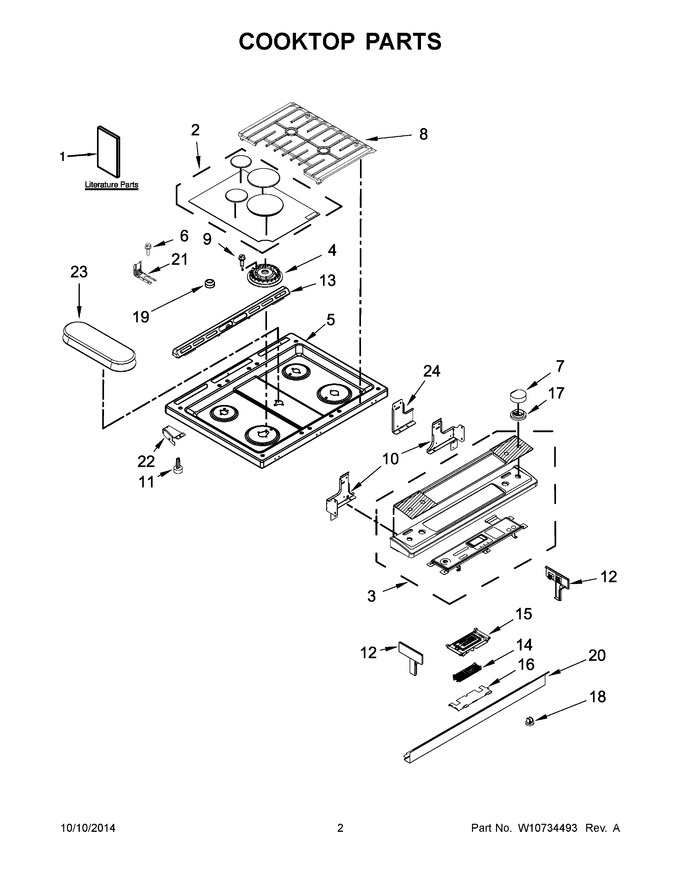

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10665256 | Installation Instructions |
|
- | |||||
| 2 | W11244067 | Set, Burner Cap (black) (Replaces: W10432498) |
|
Immediately | $ 191.32 | ||||
| 3 | W10911397 | Console (stainless) (Replaces: W10676656) |
|
Immediately | $ 697.63 | ||||
| 4 | W11238353 | Spreader, Flame (right Front) (Replaces: W10556378) |
|
$ 108.32 | |||||
| 5 | W10797526 | Cooktop (stainless) (Replaces: W10474665) |
|
$ 501.26 | |||||
| 6 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 7 | WPW10505764 | Knob (stainless) (Replaces: W10505764) |
|
$ 109.48 | |||||
| 8 | W11228127 | Grate, Set (black) (Replaces: W10432535) |
|
$ 312.79 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 25.76 | |||||
| 11 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 15.09 | ||||
| 12 | W10557751 | Endcap (stainless) (left) |
|
$ 144.73 | |||||
| 13 | W10577782 | Trim, Vent (stainless) |
|
$ 123.06 | |||||
| 14 | W11297271 | Control, Mrc2 Oven (Replaces: W10453981) |
|
$ 439.80 | |||||
| 15 | WPW10603095 | Assembly, Display (Replaces: W10603095) |
|
Immediately | $ 267.98 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 21.51 | |||||
| 17 | W11028784 | Bezel (stainless) (Replaces: W10490679) |
|
Immediately | $ 53.14 | ||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.28 | ||||
| 19 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 18.83 | ||||
| 20 | W10565662 | Console, Lower Panel (stainless) |
|
$ 178.74 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 63.54 | |||||
| 23 | W10556376 | Flame, Spreader Fish (center) |
|
$ 275.22 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 22.05 | |||||
| 10A | W10289169 | Support, Cooktop (right) |
|
$ 25.76 | |||||
| 12A | W10557754 | Endcap (stainless) (right) |
|
$ 144.73 | |||||
| 1A | W10665265 | Use And Care Guide |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | W10665235 | Wiring Diagram |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1G | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 67.37 | |||||
| 4A | W10556377 | Spreader, Flame (right Rear) |
|
$ 75.96 | |||||
| 4B | W10556379 | Spreader, Flame (left Rear) |
|
$ 78.72 | |||||
| 4C | W10556380 | Spreader, Flame (left Front) |
|
$ 166.24 | |||||
| NI | W10911847 | Harness, Main (Replaces: W10580232) |
|
Immediately | $ 207.69 | ||||
| NI | W10580228 | Harness, Bake/broil |
|
$ 120.60 | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 192.83 | ||||
| NI | W10580265 | Harness, Bake/warm Drawer |
|
Immediately | $ 75.46 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 48.02 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 | |||||
| NI | W10580229 | Wire, Ground |
|
$ 32.76 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
