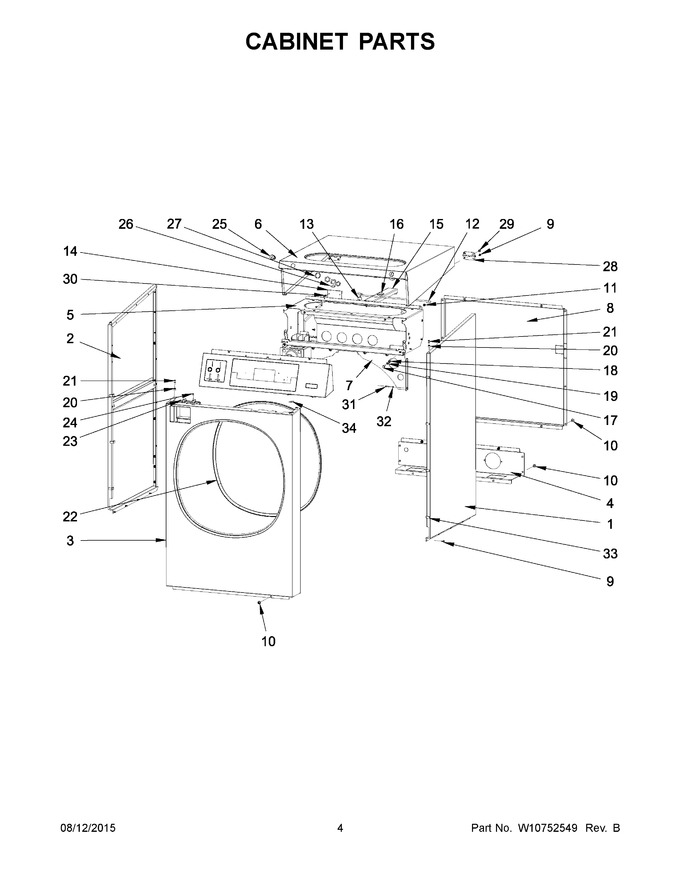

03 - Cabinet Parts


04 - Control Panel Parts


05 - Door Parts


06 - Water Inlet Parts


07 - Drain System Parts


08 - Rear Panel Parts


09 - Drum And Tub Parts


10 - Drive Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725177		Side Panel - Right (painted)		Appelez-nous	-
2	W10725211		Side Panel - Left (painted)		Appelez-nous	-
3	W10725232		Front Panel - Complete (pn) (stainless)		Appelez-nous	-
4	W10725237		Rear Cover - Lower, Complete		Appelez-nous	-
5	W10725240		Panel Holder Complete		Appelez-nous	-
6	W10725250		Top Cover - Complete (pn)		Appelez-nous	-
7	W10725422		Cabinet Reinforcement Complete		Appelez-nous	-
8	W10725425		Rear Cover		Appelez-nous	-
9	W10711800		Screw M4x11		Appelez-nous	-
10	W10286289		Bolt M6x10		Appelez-nous	-
11	23002167		Grommet, Rubber		Appelez-nous	-
12	W10712164		Prop Rod		Appelez-nous	-
13	23002454		Self Sticking Cable Clip		Appelez-nous	-
14	W10712170		Auto-unlock Module		Appelez-nous	-
15	W10725431		Top Cover Reinforcement		Appelez-nous	-
16	W10712181		Velcro Fastener		Appelez-nous	-
17	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
18	23003774		Washer M6 X 4		Appelez-nous	-
19	20007283		Washer M6   (Replaces: 23002440)				$ 504.91
20	W10711787		Insert, Rivet		Appelez-nous	-
21	W10711789		Rivet W/crank (4x16)		Appelez-nous	-
22	W10725437		Edge Protection		Appelez-nous	-
23	W10712166		Vault Bezel		Appelez-nous	-
24	23003114		Bolt M4x8		Appelez-nous	-
25	W10712231		Lock		Appelez-nous	-
26	23001009		Hook, Lock		Appelez-nous	-
27	23001007		Washer		Appelez-nous	-
28	23004103		Hinge		Appelez-nous	-
29	W10712165		Rivet W/crank (8x8)		Appelez-nous	-
30	23001099		Pc Board Socket		Appelez-nous	-
31	23002398		Bolt M4x16		Appelez-nous	-
32	23002950		Washer, Lock M4		Appelez-nous	-
33	W10711718		Self-adhesive Foam Seal		Appelez-nous	-
34	W10725440		End Stop		Appelez-nous	-
1A	W10725180		Side Panel - Right (stainless)		Appelez-nous	-
2A	W10725213		Side Panel - Left (stainless)		Appelez-nous	-
NI	W10712183		Wiring Harness, Auto-unlock Module		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10712243		Parts For Maytag Connect 360 (bolt M4x12)		Appelez-nous	-
NI	23003666		Parts For Maytag Connect 360 (nut M4)		Appelez-nous	-
