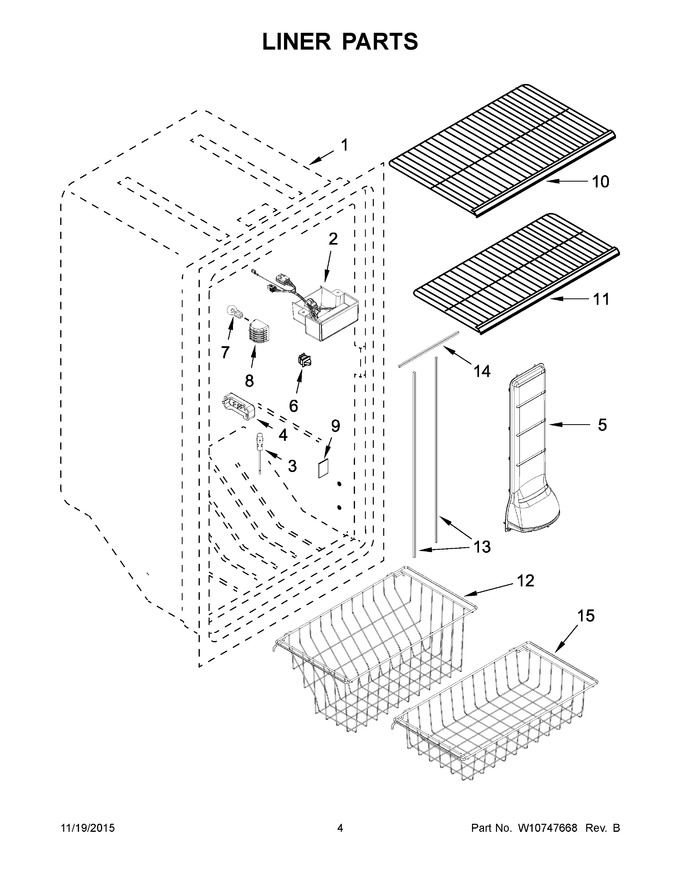

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11382526 | Control Assembly (Replaces: W10717833) |
|
Immediately | $ 275.85 | ||||
| 3 | WPW10384183 | Thermistor, Refrigerator Compartment (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 115.07 | ||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11338583 | Lamp, Led (Replaces: W10745744) |
|
Immediately | $ 91.89 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 74.13 | |||||
| 9 | 1-60123-001 | Cover, Icemaker Hole |
|
$ 68.65 | |||||
| 10 | W10860909 | Wire Shelf, Deep (Replaces: W10569282) |
|
Immediately | $ 220.30 | ||||
| 11 | W11679651 | Wire Shelf, Shallow (Replaces: W10569283) |
|
$ 115.15 | |||||
| 12 | W10713812 | Basket, Deep |
|
$ 276.52 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 | |||||
| 15 | W10713813 | Basket, Shallow |
|
$ 262.75 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11700559 | Ice Maker Field Installable, Icemaker (eckmf95) (Replaces: W10670871) |
|
$ 210.88 |
