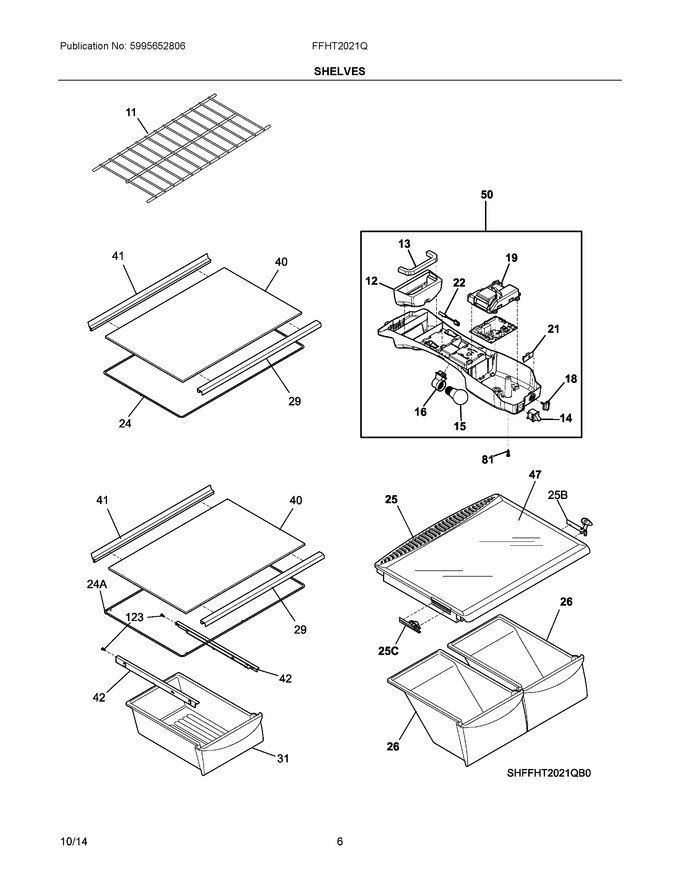

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358006 | Shelf, Freezer, Full-width, Wire |
|
$ 45.41 | |||||
| 12 | 5303918717 | Diffuser, Air, Control Box (Replaces: 5304498350) |
|
Immediately | $ 34.89 | ||||
| 13 | 242240602 | Gasket, Air Diffuser |
|
Immediately | $ 11.17 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket, Light (Replaces: 242081801) |
|
$ 72.68 | |||||
| 18 | 242217001 | Knob, Cold Control |
|
$ 226.00 | |||||
| 19 | 5304498427 | Housing, Board |
|
- | |||||
| 21 | 5304501856 | Board, User Interface, Potentiometer (Replaces: 242231601) |
|
Immediately | $ 766.96 | ||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 24 | 240372407 | Frame-shelf, Sliding, Full Width |
|
$ 151.68 | |||||
| 25 | 240364790 | Cover-crisper Pan |
|
$ 135.66 | |||||
| 26 | 240343803 | Pan, Crisper, (2) |
|
Immediately | $ 171.91 | ||||
| 29 | 240357704 | Trim-shelf, Front |
|
Immediately | $ 66.25 | ||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear (Replaces: 240530803) |
|
Immediately | $ 135.77 | ||||
| 40 | 240350621 | Glass-shelf, 23.78 X 18.02, Full Shelf |
|
$ 161.60 | |||||
| 41 | 240561502 | Trim-shelf, Rear |
|
Immediately | $ 71.59 | ||||
| 42 | 240530601 | Track, Meat Pan Hanger, Lh |
|
Immediately | $ 65.98 | ||||
| 43 | 215005101 | Screw, Hanger/rlr Mtg, 8-10 X 7/16 |
|
$ 14.89 | |||||
| 47 | 240350609 | Insert-pan Cover, Glass |
|
Immediately | $ 162.30 | ||||
| 50 | 5303918671 | Control Box, Assembly, Complete, W/board & Harns |
|
$ 360.66 | |||||
| 58 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 24A | 240372408 | Frame-shelf, Sliding, Full Width, W/hanger Tabs |
|
Immediately | $ 167.98 | ||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 47.78 | |||||
| 42A | 240530701 | Track, Meat Pan Hanger, Rh |
|
Immediately | $ 65.98 | ||||
| NIA | 241705801 | Spacer-shelf |
|
$ 7.09 |
