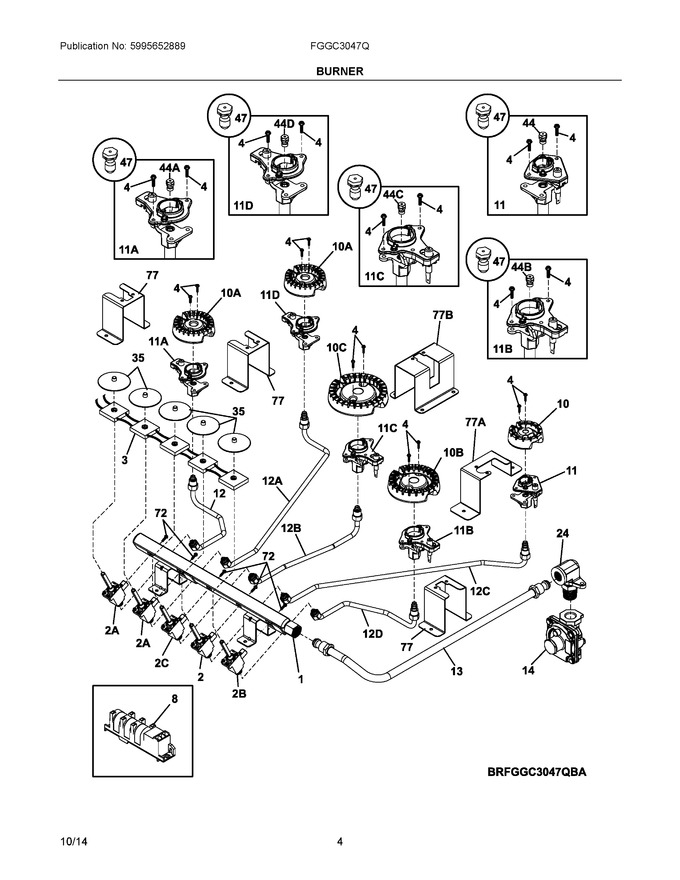

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304498880 | Manifold, Pipe |
|
$ 125.50 | |||||
| 2 | 316536009 | Valve-top Burner, 5k |
|
$ 68.04 | |||||
| 3 | 305595107 | Switch Assembly, Ignitor, W/harness |
|
$ 97.07 | |||||
| 4 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 8 | 808608804 | Module, Spark (Replaces: 318079001) |
|
Immediately | $ 76.06 | ||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 11 | 5304498786 | Ignitor/orifice Assy., Top Burner, 5k |
|
$ 82.93 | |||||
| 12 | 5304499397 | Tube, Burner, Lh Front |
|
- | |||||
| 13 | 5304498793 | Tube, Manifold Supply |
|
- | |||||
| 14 | 5304519943 | Regulator, Control (Replaces: 5304498794) |
|
$ 129.93 | |||||
| 24 | 318054010 | Elbow, Fitting |
|
$ 172.23 | |||||
| 35 | 807164301 | Bushing, Insulating |
|
- | |||||
| 44 | 5304498795 | Orifice, Ng 5k |
|
- | |||||
| 47 | 5304505703 | Lp Kit, Gas Conversion (Replaces: 5304499402) |
|
$ 68.04 | |||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 5304498799 | Bracket, Ignitor/orifice, Mounting |
|
$ 18.43 | |||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
Immediately | $ 79.80 | ||||
| 10C | 316438400 | Burner, Sealed, 17k |
|
Immediately | $ 83.42 | ||||
| 11A | 5304498787 | Ignitor/orifice Assy., Top Burner, 9.5k |
|
$ 119.83 | |||||
| 11B | 5304498788 | Ignitor/orifice Assy., Top Burner, 12k |
|
$ 134.19 | |||||
| 11C | 5304499339 | Ignitor/orifice Assy., Top Burner, 18k |
|
$ 165.86 | |||||
| 11D | 5304499396 | Ignitor/orifice Assy., Top Burner, 7.5k |
|
$ 60.96 | |||||
| 12A | 5304499398 | Tube, Burner, Lh Rear |
|
- | |||||
| 12B | 5304498883 | Tube, Burner, Center |
|
- | |||||
| 12C | 5304499399 | Tube, Burner, Rh Rear |
|
- | |||||
| 12D | 5304499400 | Tube, Burner, Rh Front |
|
- | |||||
| 2A | 316536000 | Valve-top Burner, 9.5k |
|
Immediately | $ 72.05 | ||||
| 2B | 316536001 | Valve-top Burner, 12k |
|
$ 83.42 | |||||
| 2C | 316560902 | Valve-top, Burner, 17k |
|
$ 72.80 | |||||
| 44A | 5304498796 | Orifice, Ng 9.5k |
|
- | |||||
| 44B | 5304498797 | Orifice, Ng 12k |
|
- | |||||
| 44C | 5304498816 | Orifice, Ng 17k |
|
- | |||||
| 44D | 5304499401 | Orifice, Ng 7.5k |
|
- | |||||
| 77A | 5304498800 | Bracket, Ignitor/orifice, 5k Burner, Mounting |
|
- | |||||
| 77B | 5304498888 | Bracket, Ignitor/orifice, Center Burner, Mounting |
|
$ 19.85 | |||||
| NI | 305338602 | Screw, (15) |
|
- | |||||
| NI | 305309701 | Screw, Phil, 4.2 X 6.5, (20) |
|
$ 5.67 | |||||
| NIA | 318199780 | Wiring Harness, Ignitor |
|
$ 100.56 |
