SELECT A DIAGRAM

01 - Cover Sheet

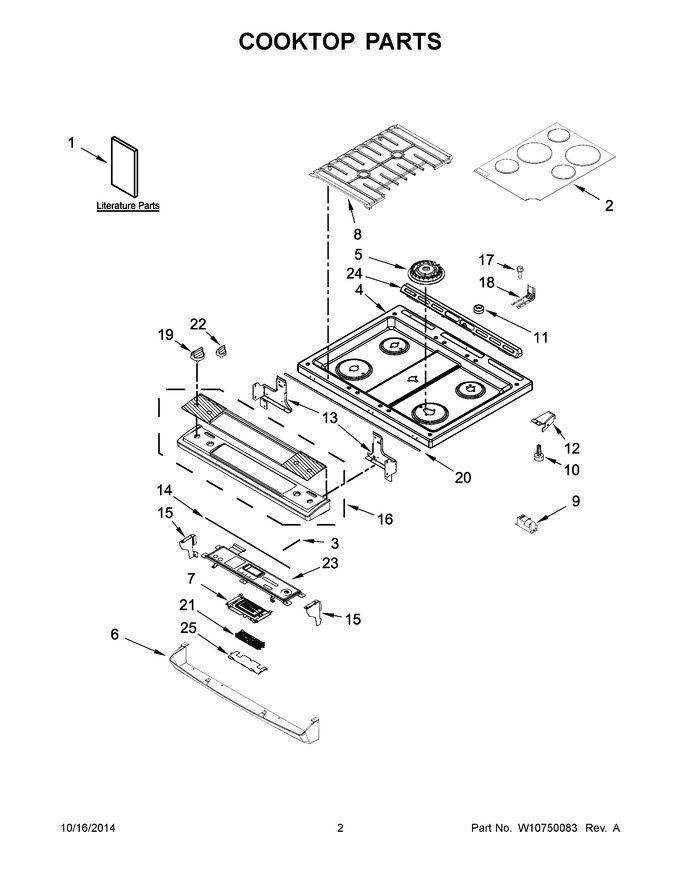

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10665256		Installation Instructions		Appelez-nous	-
2	WPW10479988		Kit, Burner Cap (black)   (Replaces: W10479988)				$ 211.22
3	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 19.65
4	W10712112		Cooktop (black)   (Replaces: W10474659)				$ 793.53
5	WPW10256028		Spreader, Flame (left Front & Right Front)   (Replaces: W10256028)			Immediately	$ 123.92
6	W11218703		Panel, Lower Console (black)   (Replaces: W10570527)			Immediately	$ 139.09
7	WPW10603098		Assembly, Display   (Replaces: W10603098)			Immediately	$ 233.58
8	W11175813		Kit, Grate (black)   (Replaces: W10432521)				$ 312.79
9	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
10	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
11	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 18.83
12	W10162253		Brace, Corner (left)				$ 63.54
13	W10289170		Support, Cooktop (left)				$ 25.76
14	W10802457		Gasket, Console   (Replaces: W10689101)				$ 18.28
15	W10547960		Bracket, Console (left)				$ 19.90
16	W10680369		Assembly, Console (black)		Appelez-nous	-
17	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33
18	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 20.73
19	W10672075		Knob (stainless)				$ 137.84
20	W10802441		Gasket, Console/cooktop   (Replaces: W10612719)			Immediately	$ 20.46
21	W11050556		Control, Electronic (mrc2)   (Replaces: W10658114)			Immediately	$ 417.14
22	W10680397		Knob, Mini (stainless)				$ 141.57
23	W10680394		Assembly, Overlay (black)				$ 304.41
24	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 175.55
25	W10558372		Bracket, Control				$ 21.51
12A	W10162252		Brace, Corner (right)				$ 67.37
13A	W10289169		Support, Cooktop (right)				$ 25.76
15A	W10547961		Bracket, Console (right)				$ 19.90
15B	W10598048		Bracket, Console (center)				$ 22.05
16A	W10680370		Assembly, Console (white)				$ 289.92
16B	W10680371		Assembly, Console (stainless)				$ 436.57
1A	W10722064		Guide, Use & Care		Appelez-nous	-
1B	W10665227		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1F	W10400067		Guide, Quick Start (french)		Appelez-nous	-
23A	W10680395		Assembly, Overlay (white)		Appelez-nous	-
23B	W10680396		Assembly, Overlay (stainless)				$ 316.80
24A	W10636527		Trim, Vent (white)				$ 215.42
2A	W10479987		Kit, Burner Cap (wetstone)				$ 99.60
4A	W10474661		Cooktop (white)		Appelez-nous	-
5A	WPW10256025		Spreader, Flame (right Rear & Center)   (Replaces: W10256025)			Immediately	$ 78.06
5B	W10836467		Spreader, Flame (left Rear)   (Replaces: W10464795)				$ 40.82
6A	W10570528		Panel, Lower Console (white)				$ 238.47
8A	W10432522		Kit, Grate (wetstone)				$ 304.58
9A	W10860916		Module, Spark (0+2)   (Replaces: W10457998)			Immediately	$ 256.13
NI	W10580282		Harness, Main				$ 272.94
NI	W10580228		Harness, Bake/broil				$ 120.60
NI	W10580265		Harness, Bake/warm Drawer			Immediately	$ 75.46
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 48.02
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 192.83
NI	W10580229		Wire, Ground				$ 32.76
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
