01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts

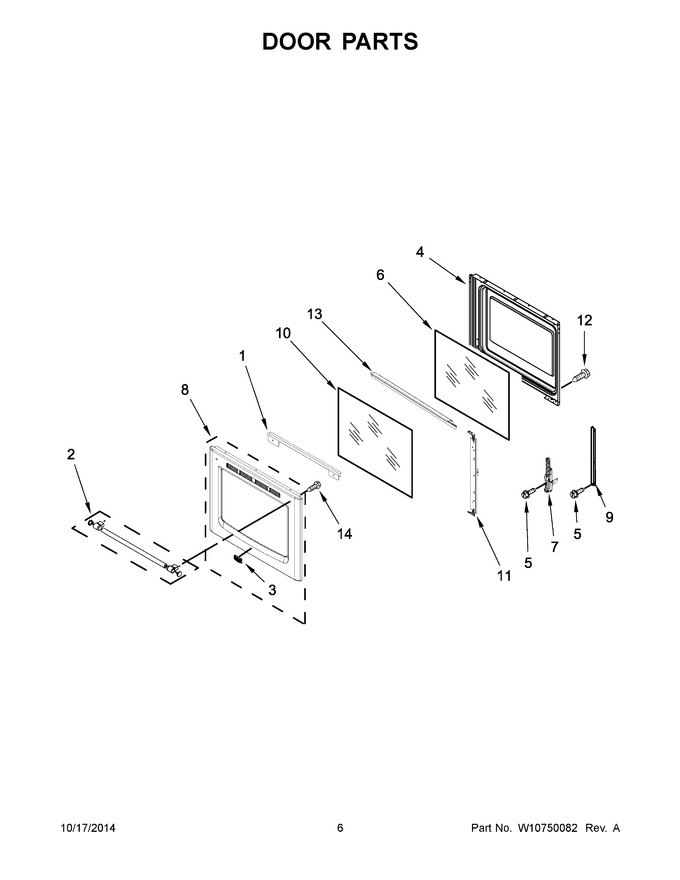

04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10339814 | Trim, Vent (black) |
|
$ 139.33 | |||||
| 2 | WPW10665831 | Assembly, Handle (stainless) (Replaces: W10665831) |
|
$ 201.17 | |||||
| 3 | W10911300 | Badge (Replaces: W10636267) |
|
$ 69.01 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 284.15 | ||||
| 5 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 227.18 | |||||
| 7 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 8 | W10655834 | Assembly, Door Skin (black) |
|
$ 248.78 | |||||
| 9 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 10 | W10615599 | Glass, Outer |
|
$ 118.66 | |||||
| 11 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 114.64 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 13 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 203.18 | ||||
| 14 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 1A | W10330075 | Trim, Vent (white) |
|
$ 71.78 | |||||
| 8A | W10655831 | Assembly, Door Skin (white) |
|
$ 252.82 | |||||
| 8B | WPW10655838 | Assembly, Door Skin (stainless) (Replaces: W10655838) |
|
Immediately | $ 319.98 |
