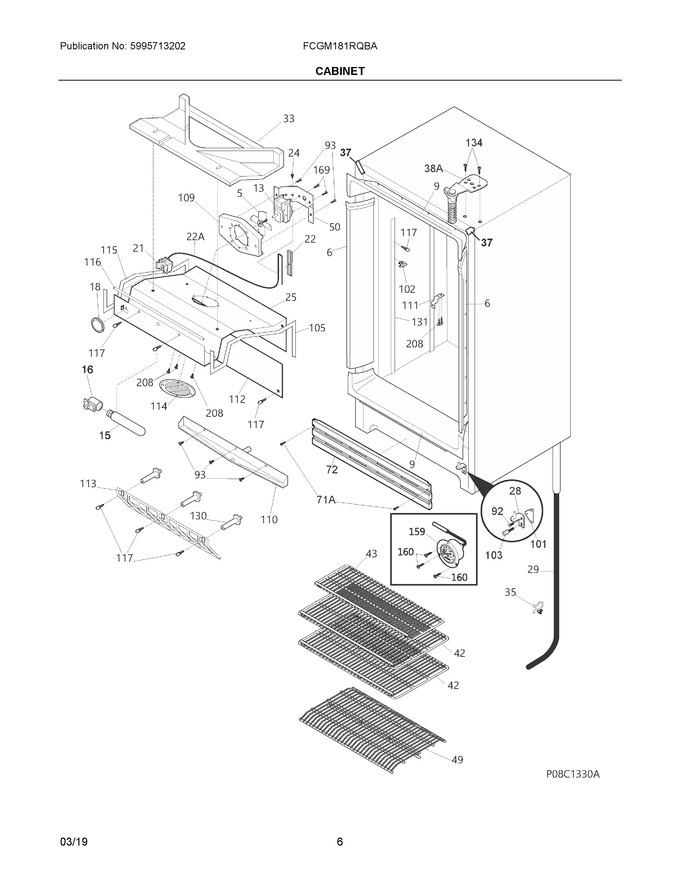

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297222500		Lock-catch		Appelez-nous	-
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	297243800		Switch, Light/lamp, Plunger				$ 36.68
15	216659500		Lamp, Fluorescent, T8, 17 Watt				$ 157.08
16	216659900		Socket-light/lamp				$ 32.50
18	216591506		Knob, Temp Control   (Replaces: 216591501)				$ 29.06
21	297216042		Control-temperature   (Replaces: 297216018)			Immediately	$ 83.09
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
25	297421401		Cover, Evaporator		Appelez-nous	-
28	216658900		Hinge-bottom				$ 48.10
29	216361901		Hose-drain				$ 93.14
31	297165800		Pan-drain				$ 89.15
33	297421501		Duct, Air				$ 69.47
34	216659400		Shield-light				$ 62.53
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273903		Trim-cabinet Corner, Silver Mist, (2)		Appelez-nous	-
38	297211200		Hinge-upper				$ 73.71
42	5304494905		Shelf, Full Frame				$ 200.26
43	5304494906		Shelf, Cup, Partial				$ 195.19
47	216680600		Deflector-air		Appelez-nous	-
49	297471401		Trivet				$ 122.62
50	08013207		Bracket-fan Motor				$ 12.92
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297071200		Grille/kickplate				$ 284.34
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Door Stop/hng   (Replaces: 216850900)				$ 13.46
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
102	297121900		Clip, Shelf Support			Immediately	$ 12.13
105	297439601		Gasket, Evaporator, Rh		Appelez-nous	-
107	297085805		Castor Kit				$ 307.02
109	297014200		Venturi, Blower				$ 56.44
110	216377000		Pan-drain, Condensate				$ 222.14
111	297141400		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain, Condensate				$ 134.09
113	216383602		Grate-air Intake		Appelez-nous	-
114	297014400		Cover-blower				$ 58.59
115	297439602		Gasket, Evaporator, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216605500		Thumbscrew				$ 13.39
120	297206600		Caster-front, (2)				$ 72.66
121	297206500		Caster-rear, (2)				$ 73.40
122	215774922		Plug Button, Silver Mist   (Replaces: 215774920)				$ 19.72
126	216658601		Nut, Lock, 5/16 Unc-3b				$ 9.19
130	297244700		Support, Evaporator Mtg				$ 4.26
131	297122000		Shelf-standard				$ 61.05
133	216658401		Bolt, Caster, 5/16 Sq. Neck, Front				$ 11.29
134	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
159	5304506337		Dial, Thermometer   (Replaces: 297070201)				$ 174.95
160	297096100		Screw, #6-20x.375 Ab, Stainless, Thermo Dial				$ 9.19
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
208	216504500		Screw, Ab, 8-18x.500		Appelez-nous	-
122A	216429602		Plug-button, Black, Upr Hinge Holes		Appelez-nous	-
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 60.96
71A	216395801		Screw, 1/4 20 X 1/2		Appelez-nous	-
71AA	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	297069500		Harness, Electrical, Evaporator				$ 155.24
NI	297001708		Insulation, Drain Tube, 36				$ 13.28
NI	5303311565		Clip-cable				$ 2.10
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NIA	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
NIA	240494003		Plug, Black   (Replaces: 297095301)				$ 18.20
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIA	297173500		Ballast, Fl Lamp				$ 155.61
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
