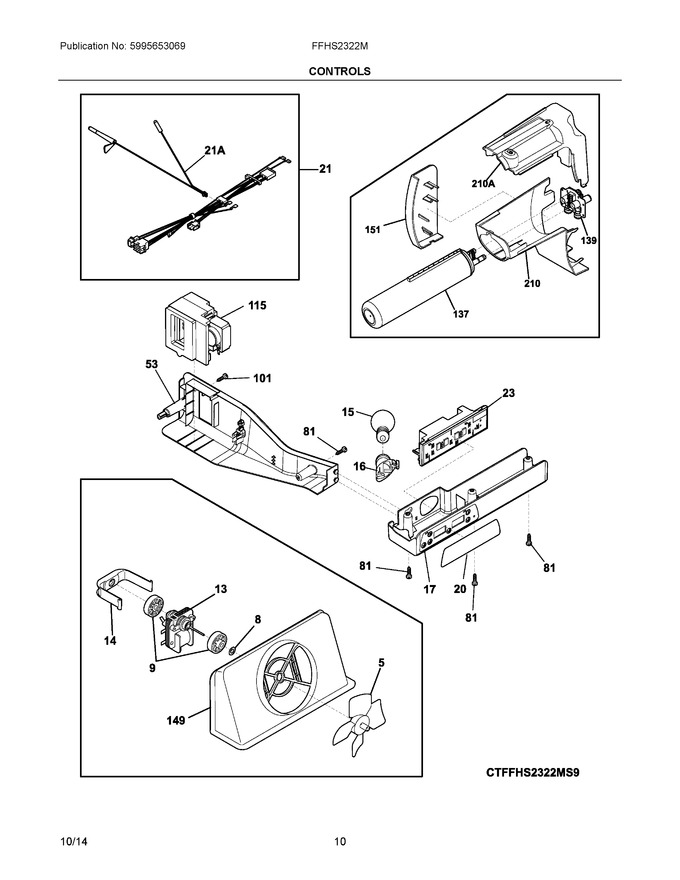

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 13 | 242077705 | Motor-blower, 13 (Replaces: 242077701) |
|
Immediately | $ 142.27 | ||||
| 14 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 218906802 | Socket-light/lamp |
|
$ 17.72 | |||||
| 17 | 241633512 | Box-control, Front |
|
$ 101.35 | |||||
| 20 | 241604010 | Label-control Box |
|
$ 4.55 | |||||
| 21 | 5304521777 | Wiring Harness, Assembly, Control Box, W/thermistors (Replaces: 242303101) |
|
$ 104.05 | |||||
| 23 | A01078804 | Control, Electronic, W/cover (Replaces: 5304498023) |
|
Immediately | $ 177.44 | ||||
| 53 | 241608902 | Box-control |
|
$ 103.14 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 101 | 241637202 | Screw, Hex Sems Head, 8-18ab X 1-3/4 |
|
$ 5.31 | |||||
| 115 | 242303001 | Damper Assy, W/seal |
|
Immediately | $ 126.56 | ||||
| 137 | WF3CB | Filter-water, Carbon (Replaces: 242294501) |
|
Immediately | $ 88.23 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 149 | 241563401 | Shroud-fan Orfice |
|
- | |||||
| 151 | 242069701 | Cover-water Filter |
|
$ 62.24 | |||||
| 210 | 241983814 | Housing-water Filtr |
|
$ 74.42 | |||||
| 210A | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| 21A | 242278801 | Thermistor Assembly, Refrig/freezer, W/connector |
|
Immediately | $ 86.47 | ||||
| NIA | 241528305 | Seal, Shroud |
|
- | |||||
| NIA | 5304521761 | Harness-wiring (Replaces: 242091801) |
|
$ 64.97 | |||||
| NIA | 5304535377 | Tape, Aluminum, 3" Wide (Replaces: 240570304) |
|
$ 31.36 |
