SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

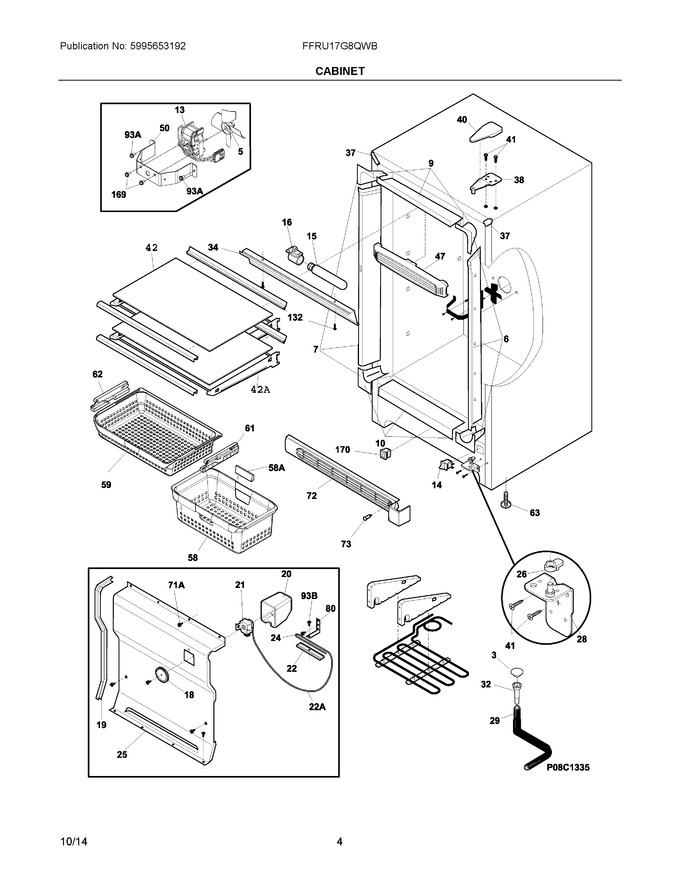

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297259600		Fan Blade, Evaporator				$ 9.50
6	297435601		Breaker				$ 45.32
9	297403901		Breaker, Top				$ 55.42
10	297403902		Breaker, Bottom				$ 60.82
12	242062801		Nameplate, White				$ 11.65
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light   (Replaces: 5304498578)			Immediately	$ 73.06
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	216707200		Knob, Temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	216967201		Cover, Temp Control				$ 15.18
21	297415203		Control, Temperature   (Replaces: 297415201)				$ 125.79
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297099250		Cover-evaporator				$ 111.25
26	297415900		Ramp, Door Closer			Immediately	$ 24.74
28	297416301		Hinge, 1/2" Pin, Bottom Rh   (Replaces: 297416300)				$ 15.18
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 297382000)				$ 13.74
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	5304497872		Shelf, Assy, Glass, Lower				$ 175.77
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 25.31
50	08013207		Bracket-fan Motor				$ 12.92
58	808618002		Basket, Lower   (Replaces: 5304494019)				$ 123.89
59	808617902		Basket   (Replaces: 5304493990)				$ 123.89
61	5304493996		Support, Hanging Basket, Rh		Appelez-nous	-
62	5304493997		Support, Hanging Basket, Lh		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297387920		Grille/kickplate, Reversible   (Replaces: 297387901)				$ 60.96
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
132	5304460601		Screw, 6-20ab X 3/8		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
10A	297177400		Bracket, (2), Drain Pan		Appelez-nous	-
10A	297334500		Heater-drain Pan				$ 72.30
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 60.96
42A	A02289402		Shelf, Assy, Glass, Lower   (Replaces: 5304497876)				$ 44.82
42A	5304497953		Shelf, Assy				$ 176.48
58A	808408301		Clip, Basket Handle, Blue				$ 21.27
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	5304495698		Energy Guide		Appelez-nous	-
NI	216946200		Service Data Sheet		Appelez-nous	-
NI	5304498525		Service Data Sheet		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIAA	5304494016		Clip, Basket Handle, Green				$ 11.60
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
NIB	5304494017		Clip, Basket Handle, Yellow		Appelez-nous	-
NIC	808408304		Clip, Basket Handle, Red				$ 21.27

    View Diagram in Separate Window       Print Part List
