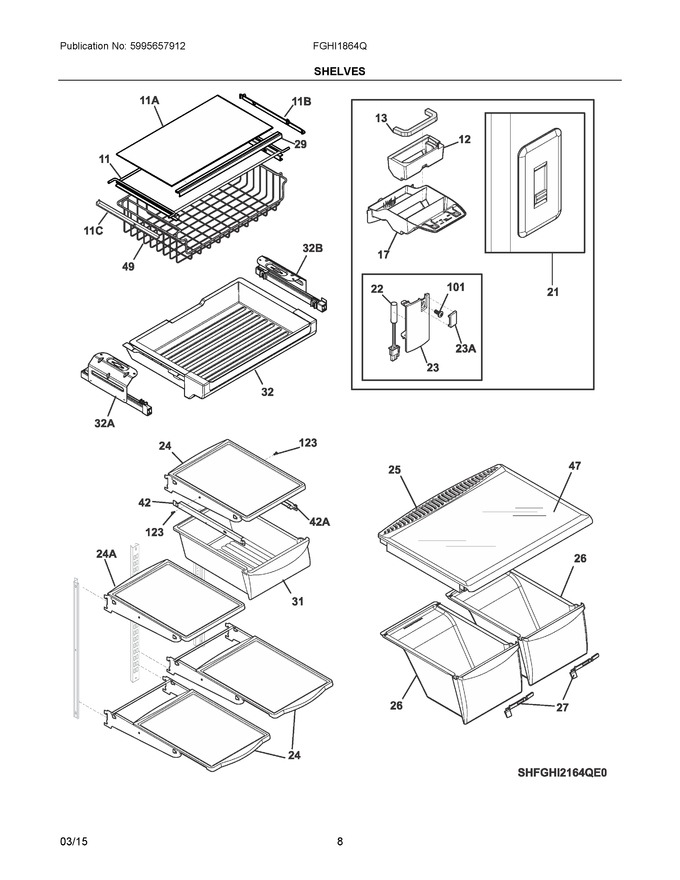

04 - Shelves


05 - System


06 - Ice Maker


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	242248501		Diffuser, Air, Light Box		Appelez-nous	-
13	240568608		Gasket, Air Diffuser		Appelez-nous	-
17	5304498968		Housing, Air & Water				$ 65.63
21	242249002		Control Assembly, Temperature, W/user Interfce			Immediately	$ 211.91
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
23	241842301		Cap-thermistor			Immediately	$ 34.02
24	241616607		Shelf-"spill-safe", Cantilever, Sliding   (Replaces: 241730504)				$ 146.81
25	242201802		Cover-crisper Pan			Immediately	$ 123.10
26	242218505		Pan, Crisper, (2), W/humid Cntl   (Replaces: 242218503)				$ 147.13
27	242215901		Slide, Humidity Contrl				$ 18.95
29	242110902		Trim-shelf, Front				$ 34.97
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 135.77
32	5304498987		Drawer, Store More				$ 148.89
41	242111002		Trim-shelf, Rear		Appelez-nous	-
42	240356501		Track, Meat Pan Hanger, Rh			Immediately	$ 56.70
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
49	5304499451		Basket-frzr, Slide Out		Appelez-nous	-
101	241953902		Screw, #8 - 18 X .380			Immediately	$ 17.11
123	215005101		Screw, Hanger/rlr Mtg, 8-10 X 7/16				$ 14.89
11A	242087901		Glass-shelf, Full Shelf		Appelez-nous	-
11B	241848601		Cover, Hanger Rh, Wire Basket		Appelez-nous	-
11C	241848602		Cover, Hanger Lh, Wire Basket		Appelez-nous	-
23A	241969001		Cap, Screw				$ 16.69
24A	241616607		Shelf-"spill-safe", Cantilever, Half Width, Fixed				$ 146.81
32A	5304498989		Slide, Shelf, Lh, Store More				$ 146.11
32B	5304498988		Slide, Shelf, Rh, Store More				$ 151.95
42A	240365401		Track, Meat Pan Hanger, Lh			Immediately	$ 51.26
NI	5303299664		Spacer, Shelf				$ 24.10
