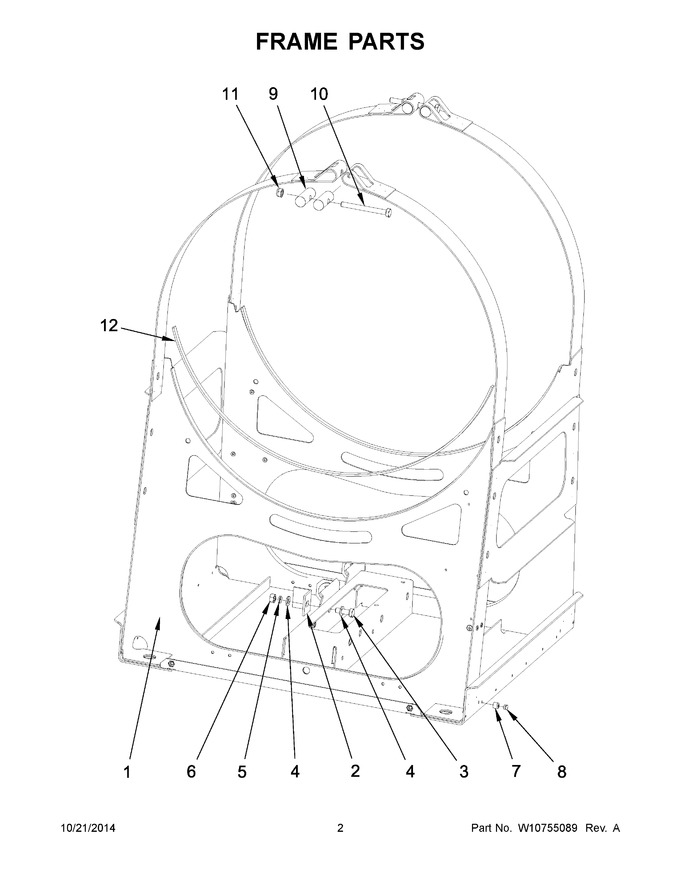

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725144 | Frame |
|
- | |||||
| 2 | 23004313 | Motor Stop |
|
- | |||||
| 3 | 23001305 | Bolt M8x25 |
|
- | |||||
| 4 | 23003769 | Washer M8 |
|
- | |||||
| 5 | 23001265 | Washer M8 |
|
- | |||||
| 6 | 23001266 | Nut M8 |
|
- | |||||
| 7 | W10711787 | Pin Insertion |
|
- | |||||
| 8 | W10711789 | Rivet W/crank (4x16) |
|
- | |||||
| 9 | W10711702 | Cover Strip Pin |
|
- | |||||
| 10 | 23003064 | Bolt M8x80 |
|
- | |||||
| 11 | 23001607 | Nut M8 |
|
- | |||||
| 12 | W10711718 | Self-adhesive Foam Sealing |
|
- |
