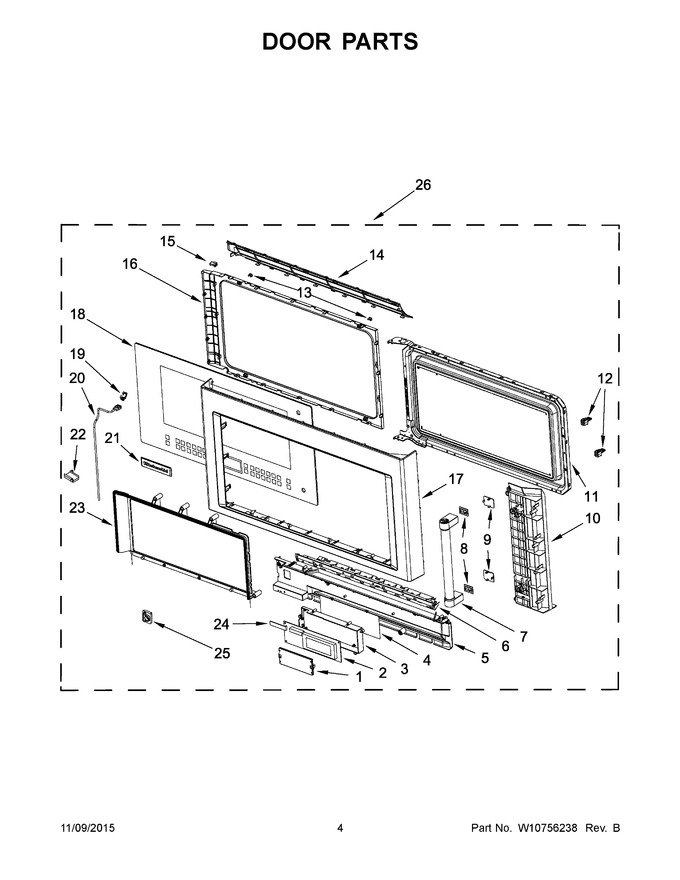

03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10540731		Lens		Appelez-nous	-
2	WPW10672983		Control   (Replaces: W10672983)				$ 120.92
3	W10478216		Holder, Ui		Appelez-nous	-
4	W10540298		Plate, Ui Insulation		Appelez-nous	-
5	W10617743		Cover, Ui		Appelez-nous	-
6	W10476546		Bracket, Door		Appelez-nous	-
7	W10604264		Assembly, Handle				$ 251.50
8	W11590575		Cushion, Handle   (Replaces: W10540736)				$ 20.22
9	W10478657		Cover, Screw (black)			Immediately	$ 19.25
10	W11699920		Bracket, Outer Door (black)   (Replaces: W10734943)				$ 73.87
11	W10568846		Body, Door (with Glass)				$ 215.51
12	W10740455		Hooks, Door   (Replaces: W10489272)			Immediately	$ 48.17
13	W10542546		Cover, Screw				$ 76.13
14	W10476550		Frame, Back Decorating (black)   (Replaces: W10688674)		Appelez-nous	-
15	W10643448		Stopper, Door				$ 19.76
16	W10897612		Frame, Inner   (Replaces: W10478653)				$ 127.74
17	W10688550		Assembly, Door Frame (stainless)				$ 380.16
18	WPW10688553		Glass, Door   (Replaces: W10688553)				$ 291.61
19	W10478659		Holder, Door Cable		Appelez-nous	-
20	W10508745		Wire, Door Control Cable				$ 24.86
21	W10909682		Black   (Replaces: W10518673)			Immediately	$ 65.31
22	W10478230		Bracket, Door Cable		Appelez-nous	-
23	W10478647		Plate, Steam Protection   (Replaces: W10687198)				$ 82.94
24	W10509362		Cable, Sensor		Appelez-nous	-
25	W10439816		Block, Door Glass		Appelez-nous	-
26	W10711113		Door, Complete (stainless)				$ 582.12
