SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

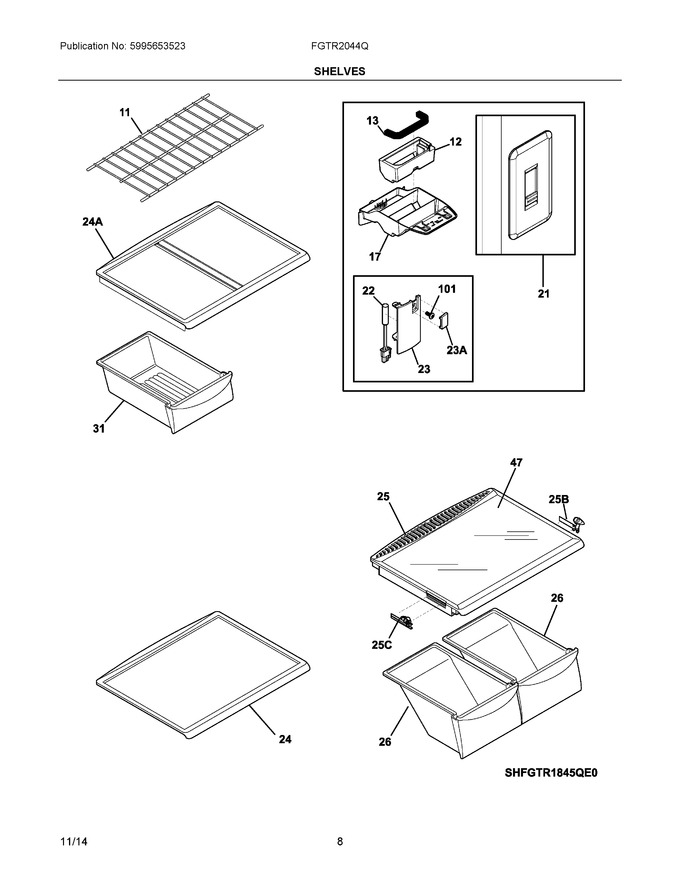

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358006 | Shelf, Freezer, Full-width, Wire |
|
$ 45.41 | |||||
| 12 | 242248501 | Diffuser, Air, Light Box |
|
- | |||||
| 13 | 240568608 | Gasket, Air Diffuser |
|
- | |||||
| 17 | 5304498968 | Housing, Air & Water |
|
$ 65.63 | |||||
| 21 | 242249002 | Control Assembly, Temperature, W/user Interfce (Replaces: 242249001) |
|
Immediately | $ 211.91 | ||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 241842301 | Cap-thermistor |
|
Immediately | $ 34.02 | ||||
| 24 | 240358928 | Shelf-"spill-safe", Sliding (Replaces: 240358927) |
|
Immediately | $ 174.36 | ||||
| 25 | 240364790 | Cover-crisper Pan |
|
$ 135.66 | |||||
| 26 | 240343803 | Pan, Crisper, (2) |
|
Immediately | $ 171.91 | ||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear (Replaces: 240530803) |
|
Immediately | $ 135.77 | ||||
| 47 | 240350609 | Insert-pan Cover, Glass |
|
Immediately | $ 162.30 | ||||
| 101 | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 17.11 | ||||
| 23A | 241969001 | Cap, Screw |
|
$ 16.69 | |||||
| 24A | 240358928 | Shelf-"spill-safe", Sliding, W/pan Hanger |
|
Immediately | $ 174.36 | ||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 47.78 | |||||
| NIA | 241705801 | Spacer-shelf |
|
$ 7.09 | |||||
| NIB | 5303299664 | Spacer, Shelf |
|
$ 24.10 |
