SELECT A DIAGRAM

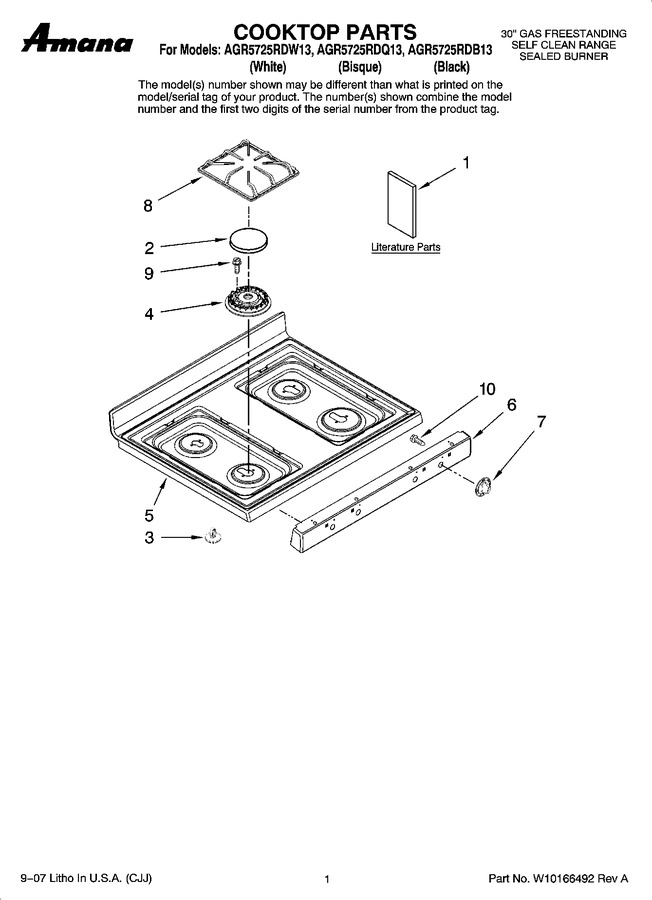

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8113P553-60		Owners Manual		Appelez-nous	-
1	W10158751		Installation Instructions		Appelez-nous	-
2	WP74007417		Cap, Burner (rf) (taupe)   (Replaces: 74007417)				$ 121.73
2	W10154101		Cap, Burner (rf) (black)				$ 55.09
2	WP74007420		Cap, Burner (rf) (gray)   (Replaces: 74007420)				$ 112.29
2	WP3191898		Cap, Burner (lr) (black)   (Replaces: W10154098)				$ 60.86
2	74007422		Cap, Burner (lr) (gray)				$ 30.56
2	WP74007419		Cap, Burner (lr) (taupe)   (Replaces: 74007419)				$ 66.47
2	WP74007415		Cap, Burner (rr & Lf) (black)   (Replaces: 74007415)				$ 87.35
2	WP74007421		Cap, Burner (rr & Lf) (gray)   (Replaces: 74007421)				$ 81.71
2	74007418		Cap, Burner (rr & Lf) (taupe)				$ 39.39
3	74008761		Spacer, Snap-in				$ 7.55
4	WPW10406797		Burner (rr & Lf)   (Replaces: 74007698)				$ 79.64
4	WPW10406243		Burner (lr)   (Replaces: 74007411)			Immediately	$ 33.50
4	WPW10406878		Burner (rf)   (Replaces: 74007413)			Immediately	$ 92.12
5	74009042		Cooktop (white)		Appelez-nous	-
5	74009041		Cooktop (black)		Appelez-nous	-
5	74009043		Cooktop (bisque)		Appelez-nous	-
6	74008848		Panel, Manifold (black)		Appelez-nous	-
6	74011413		Panel, Manifold (white)		Appelez-nous	-
6	74011116		Panel, Manifold (bisque)		Appelez-nous	-
7	74008852		Knob, Control (4) (white)				$ 20.07
7	74008850		Knob, Control (4) (black)				$ 19.70
7	74008851		Knob, Control (4) (bisque)		Appelez-nous	-
8	74008869		Grate, Burner (4) (taupe)				$ 0.01
8	74008870		Grate, Burner (4) (black)		Appelez-nous	-
8	74008868		Grate, Burner (4) (gray)				$ 75.40
9	WP3368921		Screw (8)   (Replaces: 7101P685-60)			Immediately	$ 6.42
10	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
