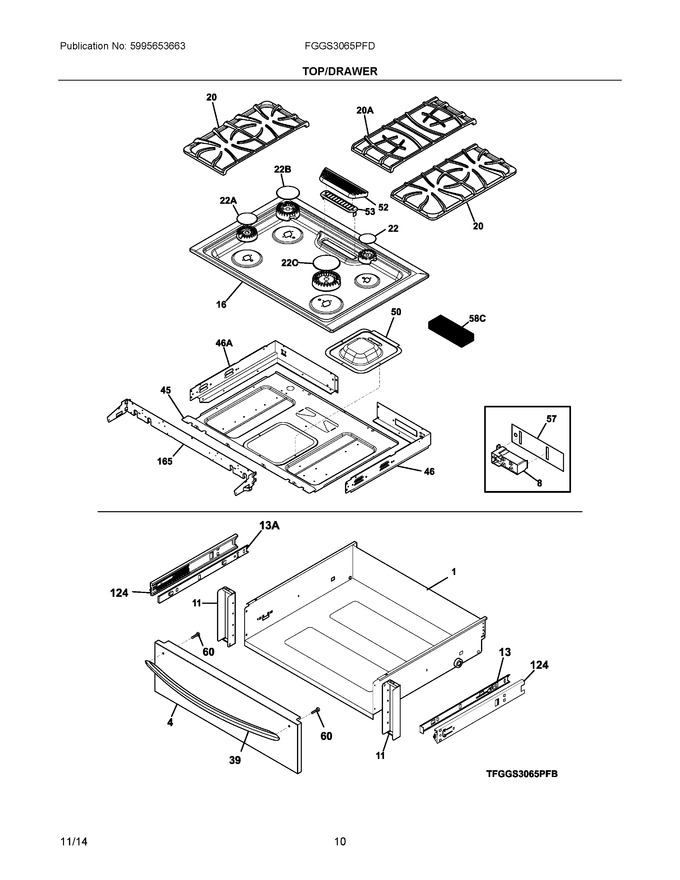

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318107317 | Drawer (Replaces: 318107313) |
|
$ 144.09 | |||||
| 4 | 318298829 | Panel, Drawer, Stainless, Front (Replaces: 318298826) |
|
$ 210.92 | |||||
| 8 | 808608802 | Module, Spark (Replaces: 316262405) |
|
Immediately | $ 82.93 | ||||
| 11 | 318298600 | Bracket, Drawer Support, (2) |
|
$ 62.69 | |||||
| 13 | 318259504 | Glide, Warmer, Inner Rh |
|
$ 29.49 | |||||
| 16 | 318569271 | Maintop Assembly, Black |
|
$ 275.29 | |||||
| 20 | 318560260 | Grate, Burner, Black, (2) |
|
- | |||||
| 22 | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554008) |
|
Immediately | $ 168.44 | ||||
| 45 | 318578701 | Panel, Burner Box, Bottom |
|
- | |||||
| 46 | 318568200 | Box, Burner, Rh |
|
$ 23.99 | |||||
| 50 | 318578803 | Panel, Service, Fan |
|
$ 43.73 | |||||
| 52 | 318291126 | Cover, Flue, Black, Outer (Replaces: 318291102) |
|
$ 87.55 | |||||
| 53 | 318308303 | Cover, Flue, Black |
|
$ 112.19 | |||||
| 57 | 318295611 | Panel, Service |
|
$ 15.12 | |||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 124 | 318330600 | Glide, Drawer, Outer/rh & Lh, (2) |
|
$ 77.97 | |||||
| 165 | 318913300 | Deflector, Box, Front |
|
$ 48.67 | |||||
| 13A | 318259505 | Glide, Warmer, Inner Lh |
|
$ 33.03 | |||||
| 20A | 318560470 | Grate, Black, Center |
|
$ 290.46 | |||||
| 22A | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22B | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22C | 5304508468 | Cap, 17k Burner, Black (Replaces: 316262104) |
|
$ 49.45 | |||||
| 46A | 318568201 | Box, Burner, Lh |
|
$ 28.93 | |||||
| 58C | 318594402 | Insulation, Flue (Replaces: 318594401) |
|
$ 245.64 | |||||
| NI | 316260800 | Screw-shoulder, W/shoulder, #8-18 X 1/2 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 318291504 | Plate, Cook Top |
|
- |
