View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body

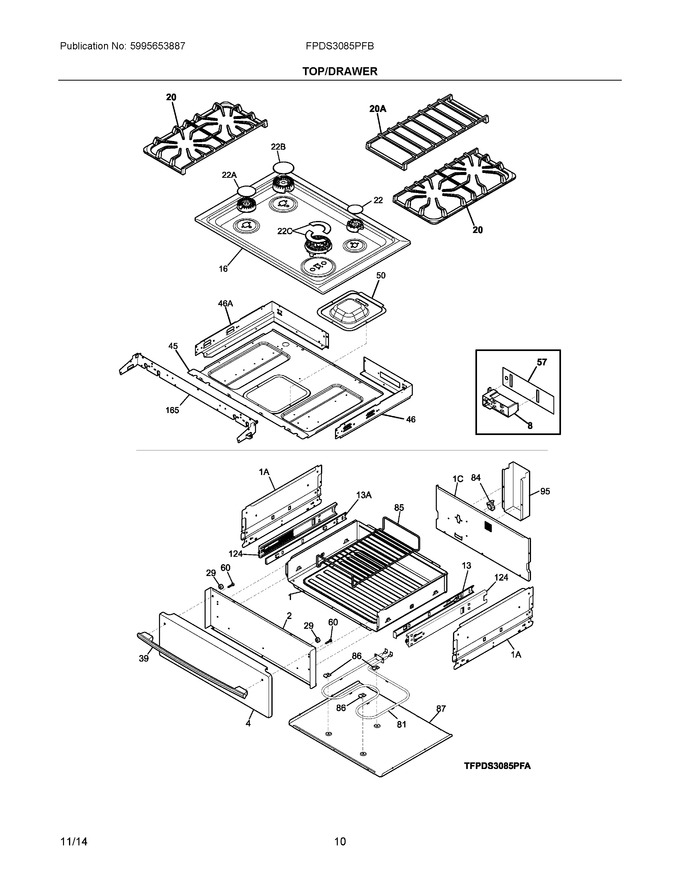

05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318304404 | Drawer, Body Assembly |
|
$ 195.56 | |||||
| 2 | 318303907 | Panel, Drawer, Black, Inner |
|
$ 124.90 | |||||
| 4 | 318298829 | Panel, Drawer, Stainless, Front (Replaces: 318298826) |
|
$ 210.92 | |||||
| 8 | 808608802 | Module, Spark (Replaces: 316262405) |
|
Immediately | $ 82.93 | ||||
| 13 | 318259509 | Glide, Warmer, Inner Rh |
|
$ 26.25 | |||||
| 16 | 318569033 | Maintop Assembly, Black |
|
$ 226.07 | |||||
| 20 | 5304493357 | Grate, Burner, Black, Side, (2) |
|
$ 194.20 | |||||
| 22 | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 29 | 318147430 | Bumper, (2) |
|
$ 18.95 | |||||
| 39 | 5304532118 | Handle, Door/drawer, Stainless (Replaces: 316551501) |
|
$ 112.88 | |||||
| 45 | 318578700 | Panel, Burner Box, Bottom |
|
$ 53.81 | |||||
| 46 | 318568200 | Box, Burner, Rh |
|
$ 23.99 | |||||
| 50 | 318578803 | Panel, Service, Fan |
|
$ 43.73 | |||||
| 57 | 318295611 | Panel, Service |
|
$ 15.12 | |||||
| 60 | 5304472906 | Screw, Handle Mtg, #10-24 X 1.5, (2) |
|
$ 8.98 | |||||
| 81 | 318255301 | Element, Warmer Drawer |
|
$ 105.42 | |||||
| 84 | 318005108 | Thermostat |
|
Immediately | $ 81.14 | ||||
| 85 | 807328301 | Rack, Warmer Drawer |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip, Hold Down, (3) |
|
$ 9.93 | |||||
| 87 | 318300102 | Panel, Warmer Drawer, Lower |
|
$ 106.22 | |||||
| 95 | 139008401 | Shield, Wire |
|
- | |||||
| 124 | 316105501 | Glide, Outer/rh & Lh, (2) |
|
$ 90.72 | |||||
| 165 | 318913300 | Deflector, Box, Front |
|
$ 48.67 | |||||
| 13A | 318259508 | Glide, Warmer, Inner Lh |
|
$ 27.88 | |||||
| 1A | 318300003 | Panel, Warmer Drawer, Side, (2) |
|
$ 56.13 | |||||
| 1C | 139022600 | Panel, Warmer Drawer, Rear |
|
- | |||||
| 20A | 5304490871 | Grate, Burner, Black, Center |
|
$ 202.00 | |||||
| 22A | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22B | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22C | 316262204 | Cap, 17k Twin Burner, Black, (2) |
|
Immediately | $ 72.80 | ||||
| 46A | 318568201 | Box, Burner, Lh |
|
$ 28.93 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 318291504 | Plate, Cook Top |
|
- |
