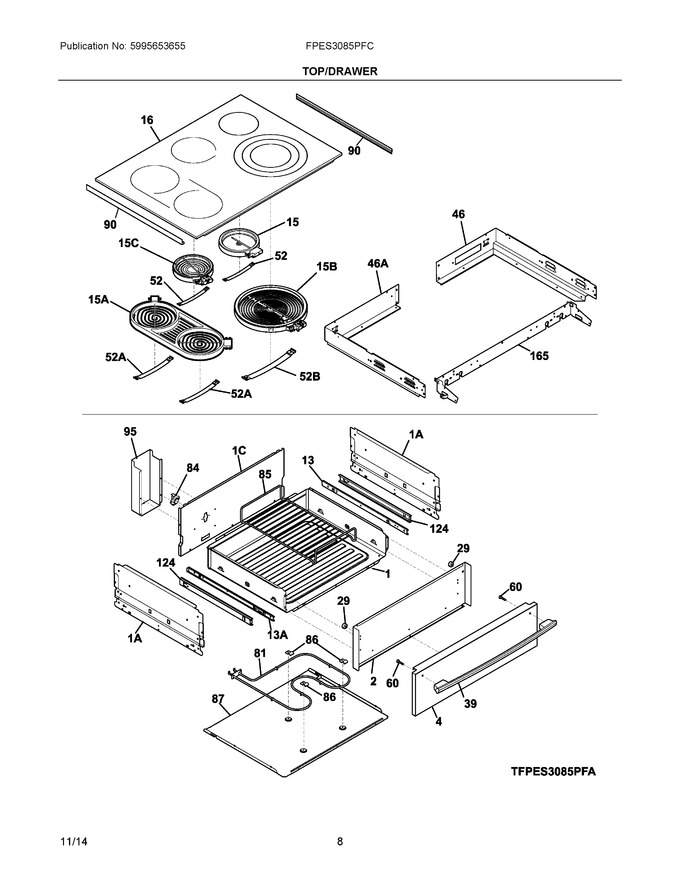

01 - Cover Sheet
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318304404 | Drawer, Body Assembly |
|
$ 195.56 | |||||
| 2 | 318303907 | Panel, Drawer, Black, Inner |
|
$ 124.90 | |||||
| 4 | 318298829 | Panel, Drawer, Stainless, Front (Replaces: 318298826) |
|
$ 210.92 | |||||
| 13 | 318259509 | Glide, Warmer, Inner Rh |
|
$ 26.25 | |||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 139033800 | Smoothtop Assembly, Glass, Black |
|
$ 519.06 | |||||
| 29 | 318147430 | Bumper, (2) |
|
$ 18.95 | |||||
| 39 | 5304532118 | Handle, Door/drawer, Stainless (Replaces: 316551500) |
|
$ 112.88 | |||||
| 46 | 318568200 | Box, Burner, Rh |
|
$ 23.99 | |||||
| 52 | 318122006 | Spring, Element Mtg, Small |
|
$ 66.25 | |||||
| 60 | 5304472906 | Screw, Handle Mtg, #10-24 X 1.5, (2) |
|
$ 8.98 | |||||
| 81 | 318255301 | Element, Warmer Drawer |
|
$ 105.42 | |||||
| 84 | 318005108 | Thermostat |
|
Immediately | $ 81.14 | ||||
| 85 | 807328301 | Rack, Warmer Drawer |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip, Hold Down, (3) |
|
$ 9.93 | |||||
| 87 | 318300102 | Panel, Warmer Drawer, Lower |
|
$ 106.22 | |||||
| 90 | 318368001 | Channel, Glass Protector, (2) |
|
$ 22.98 | |||||
| 95 | 139008401 | Shield, Wire |
|
- | |||||
| 124 | 316105501 | Glide, Outer/rh & Lh, (2) |
|
$ 90.72 | |||||
| 165 | 318913300 | Deflector, Box, Front |
|
$ 48.67 | |||||
| 13A | 318259508 | Glide, Warmer, Inner Lh |
|
$ 27.88 | |||||
| 15A | 807219901 | Element, Bridge, 1800/2600w |
|
Immediately | $ 309.02 | ||||
| 15B | 318297810 | Element, Surface, Triple, 800/1000/1200, 6"/8"/11 |
|
Immediately | $ 356.54 | ||||
| 15C | 140273621015 | Element, Surface, Warmer, 100 W (Replaces: 316289800) |
|
Immediately | $ 35.77 | ||||
| 1A | 318300003 | Panel, Warmer Drawer, Side, (2) |
|
$ 56.13 | |||||
| 1C | 139022600 | Panel, Warmer Drawer, Rear |
|
- | |||||
| 46A | 318568201 | Box, Burner, Lh |
|
$ 28.93 | |||||
| 52A | 318122008 | Spring, Element Mtg, 1800w/3000w |
|
$ 90.80 | |||||
| 52B | 318122011 | Spring, Element Mtg, 1200w/1800w |
|
$ 62.14 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 5.67 | |||||
| NI | 808158601 | Harness, Wiring, Surface Units |
|
$ 139.02 | |||||
| NI | 318531701 | Spacer |
|
$ 12.05 | |||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 |
