SELECT A DIAGRAM

01 - Cover Sheet


02 - Frame Parts


03 - Cabinet Parts


04 - Control Panel Parts


05 - Door Parts


06 - Water Inlet Parts


07 - Drain System Parts


08 - Rear Panel Parts


09 - Drum And Tub Parts


10 - Drive Parts


11 - Steam Heating Parts

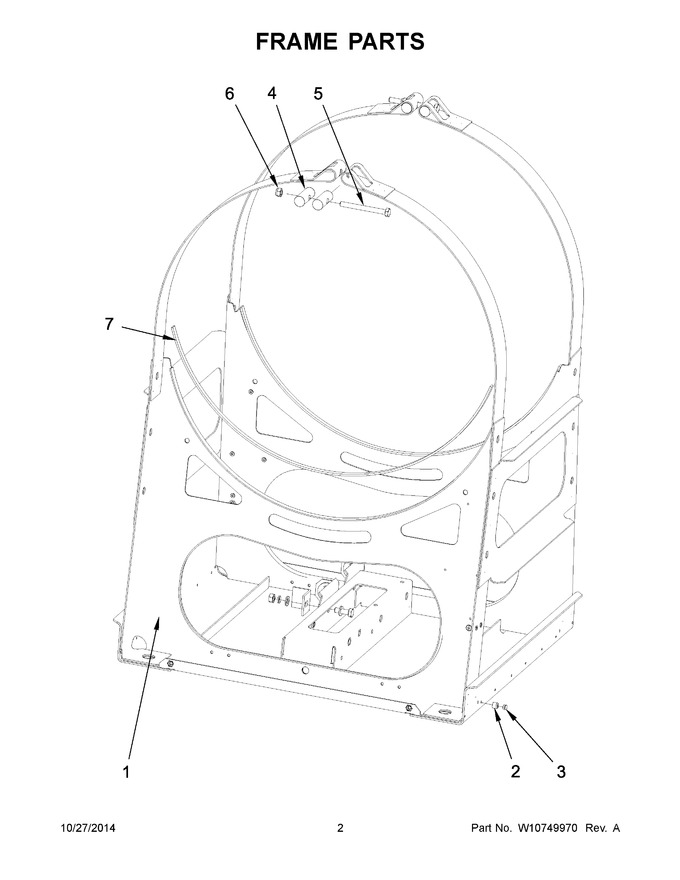

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725156		Frame		Appelez-nous	-
2	W10711787		Pin Insertion		Appelez-nous	-
3	W10711789		Rivet W/crank (4x16)		Appelez-nous	-
4	W10711702		Cover Strip Pin		Appelez-nous	-
5	W10711703		Bolt M8x100		Appelez-nous	-
6	23001607		Nut M8		Appelez-nous	-
7	W10711718		Self-adhesive Foam Sealing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
