01 - Cabinet
02 - Cavity
03 - Control Panel/top Assembly
04 - Door/drawer
05 - Gas Controls
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

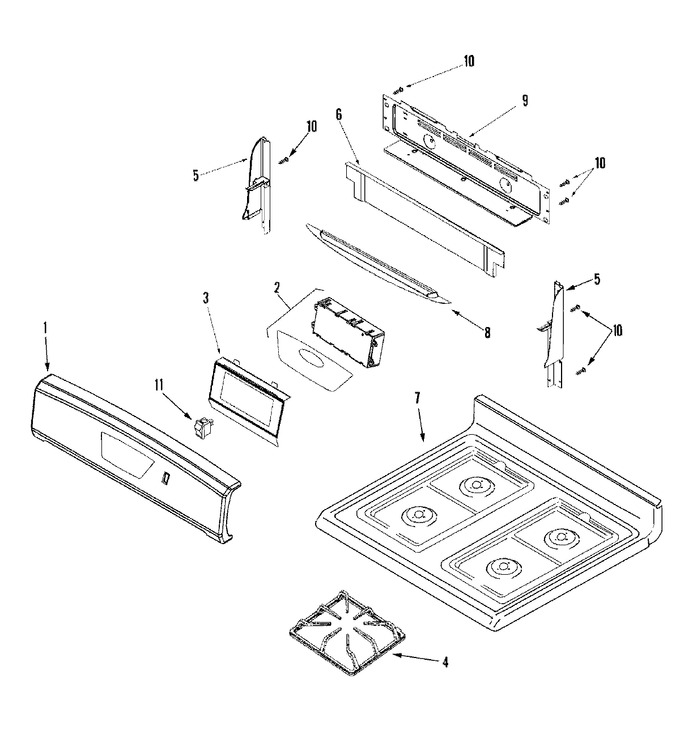

| 1 | 74008824 | Panel, Backguard (bsq) | 10 |
|
- | ||||
| 2 | 74009215 | Clock/overlay (bsq) | 10 |
|
- | ||||
| 3 | 74008716 | Bracket, Clock | 10 |
|
- | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 4 | 74008869 | Grate (taupe) | 10 |
|
$ 0.01 | ||||
| 5 | 74009078 | End Cap (rt-bsq) | 10 |
|
- | ||||
| 5 | 74009080 | End Cap (lt-bsq) | 10 |
|
- | ||||
| 6 | 74009444 | Shield, Vent | 10 |
|
- | ||||
| 7 | 74009043 | Top, Main (bsq) | 10 |
|
- | ||||
| 7 | 74008761 | Spacer, Snap-in | 10 |
|
$ 7.55 | ||||
| 8 | 74010579 | Shield, Heat Visor (bsq) | 10 |
|
- | ||||
| 9 | 74010983 | Cover, Rear Wire | 10 |
|
- | ||||
| 9 | 74009653 | Cover, Broil Access Fitting | 10 |
|
- | ||||
| 9 | 74008836 | Insulation, Foil (bkgd) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74008765 | Switch, Rocker (bsq) | 10 |
|
$ 79.50 |
