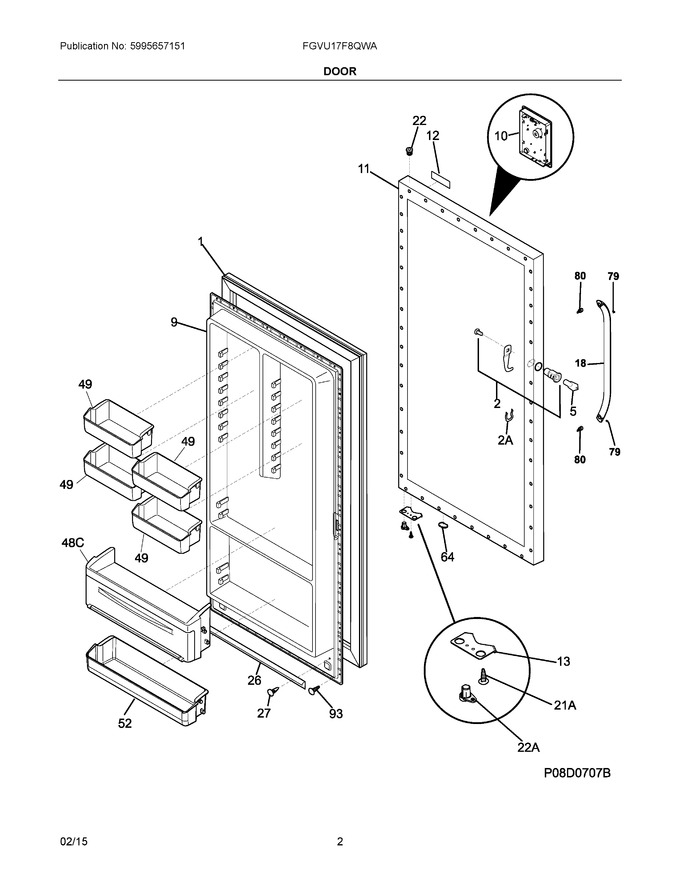

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505529		Gasket-door, White   (Replaces: 216522376)			Immediately	$ 188.15
2	297318600		Lock Assy				$ 36.87
5	297147700		Key, Lock			Immediately	$ 7.57
9	297382600		Panel-inner Door, Frzr				$ 207.67
10	808772224		Control Assembly   (Replaces: 5304494027)			Immediately	$ 222.20
11	297352765		Panel-, Outer Door				$ 376.01
12	242015201		Label-nameplate			Immediately	$ 6.90
13	297416200		Door Stop				$ 15.90
18	5304511509		Handle-door, White, W/set Screws   (Replaces: 242059302)				$ 136.25
22	216970802		Bearing, Hinge, Black, Top			Immediately	$ 10.85
26	297387100		Gasket, Secondary				$ 19.52
27	5304472186		Clip, Panel Mtg				$ 11.57
49	297187201		Bin-door, 2l, Clear				$ 77.75
52	297225603		Bin-door, Clear				$ 126.21
64	297014702		Plug-button, Door Base				$ 9.41
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
21A	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Door Stop/hng   (Replaces: 216850900)				$ 13.46
22A	297415900		Ramp, Door Closer			Immediately	$ 24.74
2A	297213300		Clip, Spring				$ 10.17
48C	297350101		Bin-door			Immediately	$ 139.23
NI	5304494359		Harness, Door				$ 44.52
NIA	240537301		Nut-anchor, Door Hdl Screw				$ 11.34
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83
NIB	297407700		Handle-intallation Kit				$ 10.13

    View Diagram in Separate Window       Print Part List
