SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

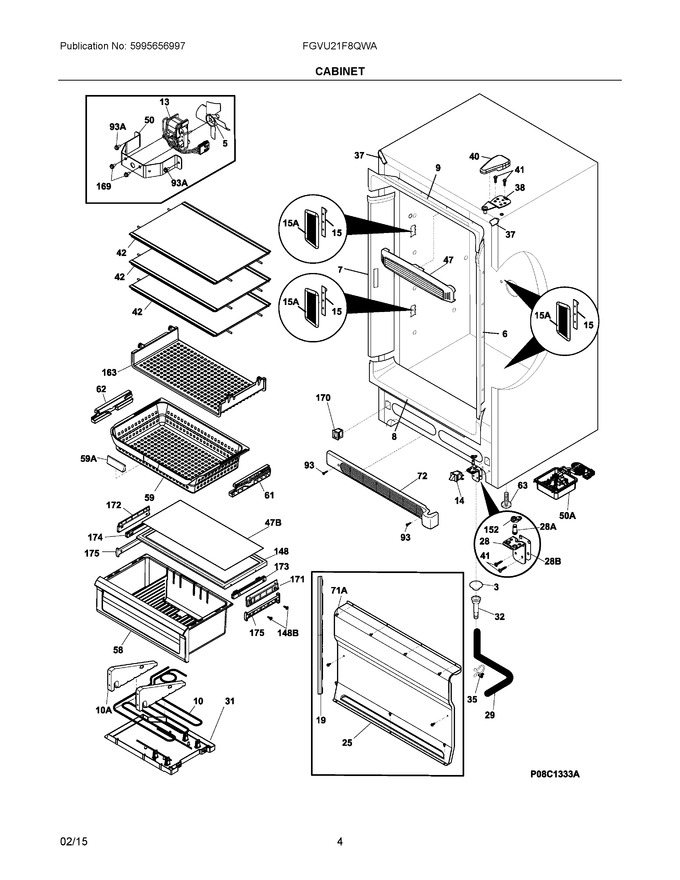

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297437300		Fan Blade				$ 7.46
6	297435605		Breaker				$ 51.57
7	297435604		Breaker, U21, W/lock				$ 58.50
8	297403902		Breaker, Bottom				$ 60.82
9	297403901		Breaker, Top				$ 55.42
10	297334500		Heater-drain Pan				$ 72.30
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	242196204		Light Board, 3 Led Cluster			Immediately	$ 66.02
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099251		Cover-evaporator				$ 109.93
28	297416301		Hinge, 1/2" Pin, Bottom Rh   (Replaces: 297416300)				$ 15.18
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	297165803		Pan-drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 297382000)				$ 13.74
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge, White				$ 12.65
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	5304497873		Shelf, Assy, Glass, Upper				$ 185.70
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket, Fan Motor Mount   (Replaces: 216394000)				$ 22.75
58	297295703		Bin, Crisper, Assy		Appelez-nous	-
59	5304493991		Basket				$ 94.97
61	5304493996		Support, Hanging Basket, Rh		Appelez-nous	-
62	5304493997		Support, Hanging Basket, Lh		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297387701		Grille/kickplate				$ 40.06
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
148	297271700		Frame-crisper Cover				$ 215.20
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 10.13
163	808617701		Shelf, Pizza, Hanging		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
171	297092700		Bracket, Crisper Cover, Rh				$ 55.36
172	297092701		Bracket, Crisper Cover, Lh				$ 56.88
173	5304515502		Slide, Crisper, Rh, W/clips   (Replaces: 297291210)				$ 77.36
174	5304515501		Slide, Crisper, Lh, W/clips   (Replaces: 297291211)				$ 78.08
175	297099500		Support, Crisper			Immediately	$ 47.03
10A	297177400		Bracket, (2), Drain Pan		Appelez-nous	-
148B	297142600		Screw, Blunt, 8-32 X 5/8				$ 13.01
15A	242202701		Lens, 3 Led Cluster				$ 30.47
28A	297438300		Pin, Bottom Hinge				$ 7.23
28B	5304497244		Shim, Bottom Hinge				$ 6.51
47B	297102704		Glass, Crisper Cover				$ 146.76
50A	5304500699		Board Assembly, Main Control, W/housing				$ 328.60
59A	808408301		Clip, Basket Handle, Blue				$ 21.27
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	5304496697		Cover, Access, Machine Compt.		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	5304498666		Energuide		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	5304496283		Grommet, Shelf Mtg				$ 9.22
NIA	216327800		Clip, Wire		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIA	216502400		Grommet-shelf Mtg				$ 16.63
NIAA	808408304		Clip, Basket Handle, Red				$ 21.27
NIAB	5304494016		Clip, Basket Handle, Green				$ 11.60
NIAC	5304494017		Clip, Basket Handle, Yellow		Appelez-nous	-
NIB	5304509705		Grommet-shelf Mtg   (Replaces: 216817700)				$ 10.01
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
